Ubiquiti UniFi U-PoE++ 802.3bt 60W POE Injector Adapter
$55.00

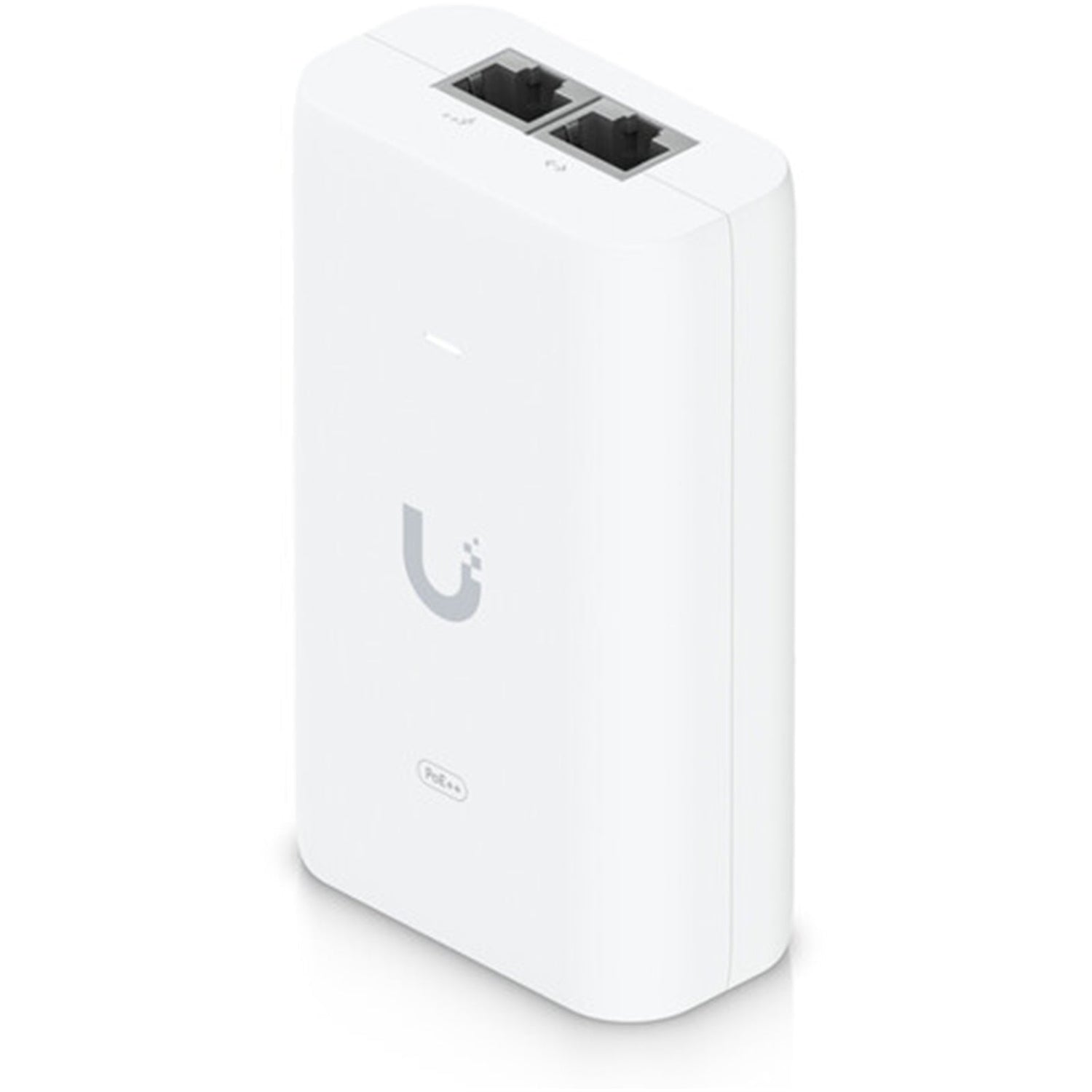

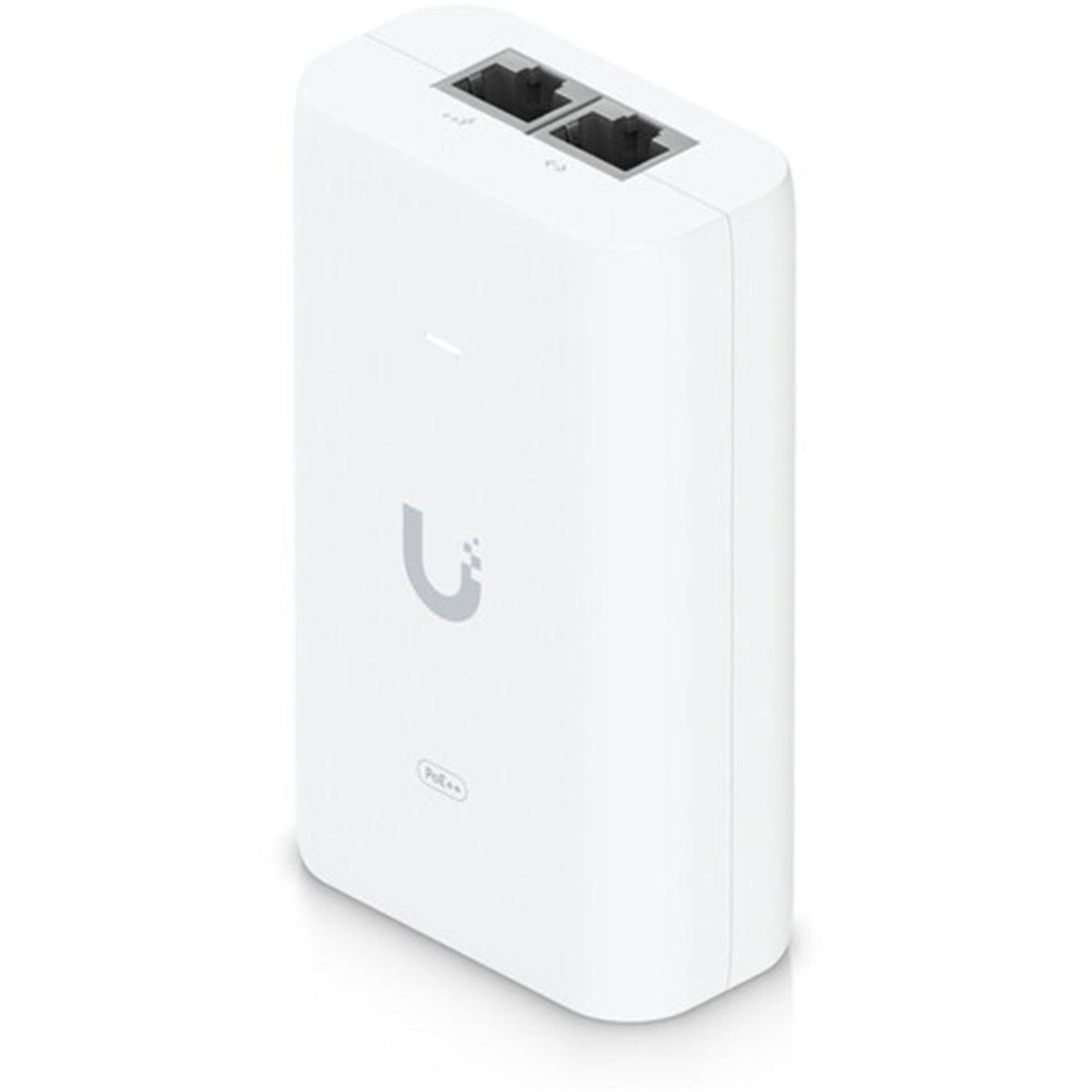

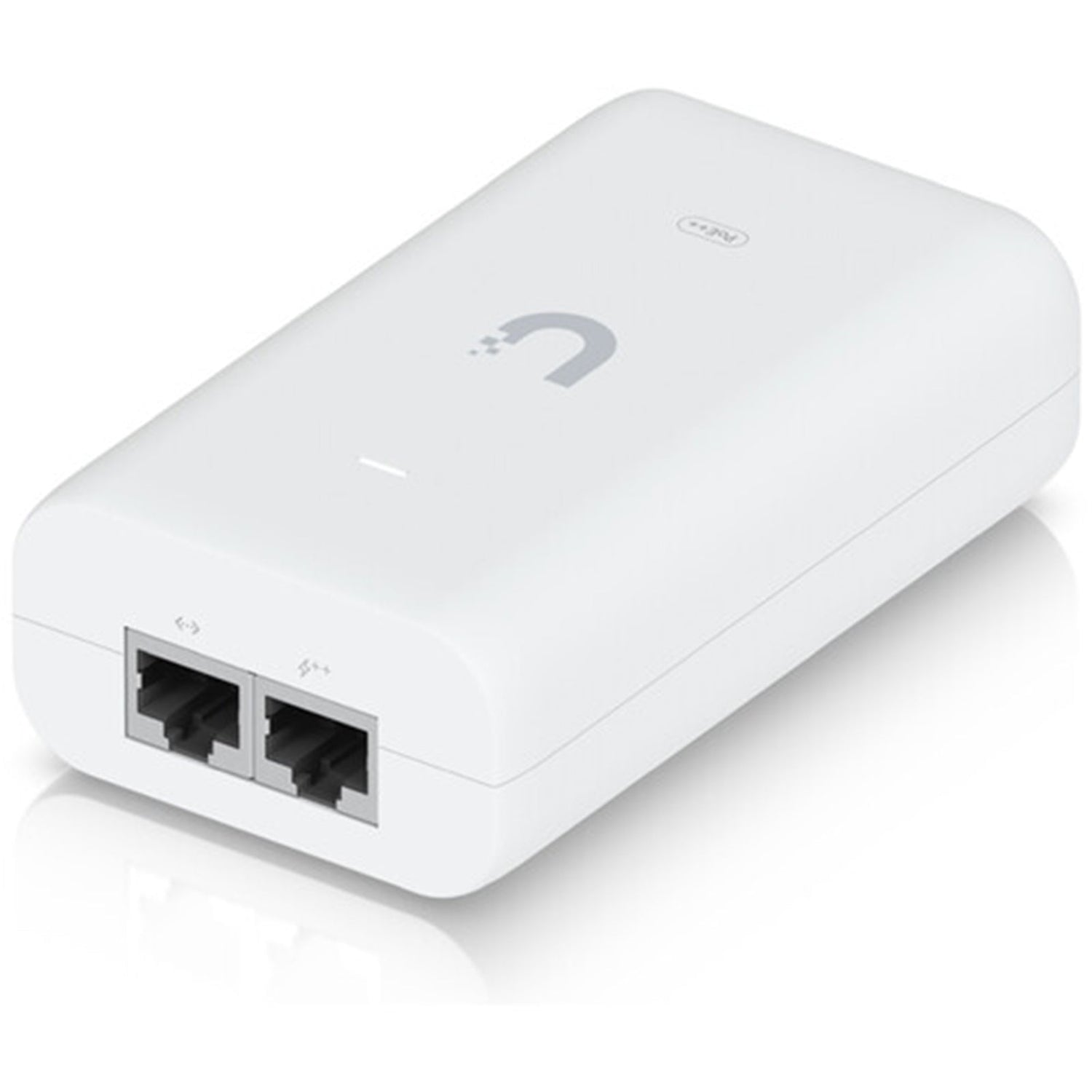

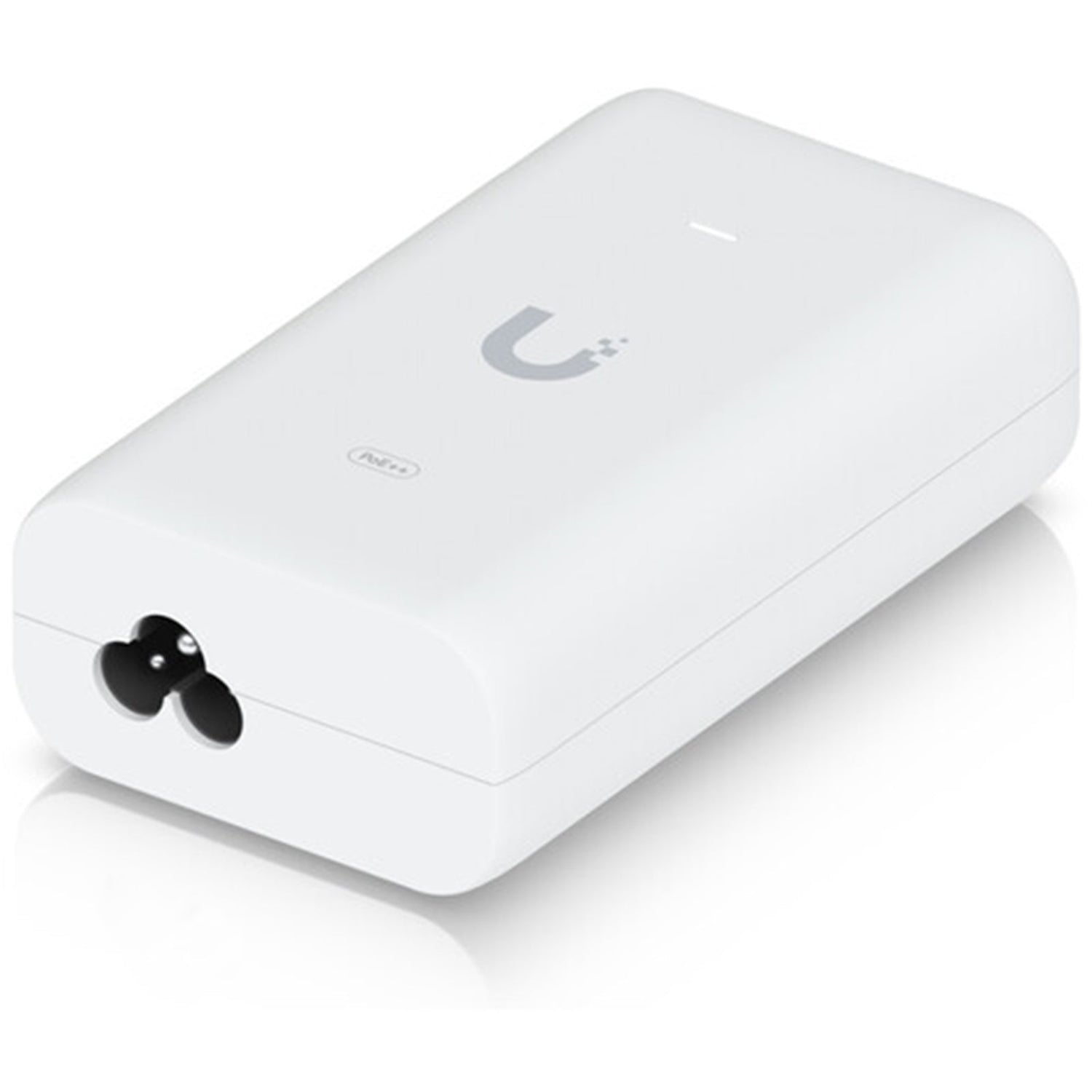

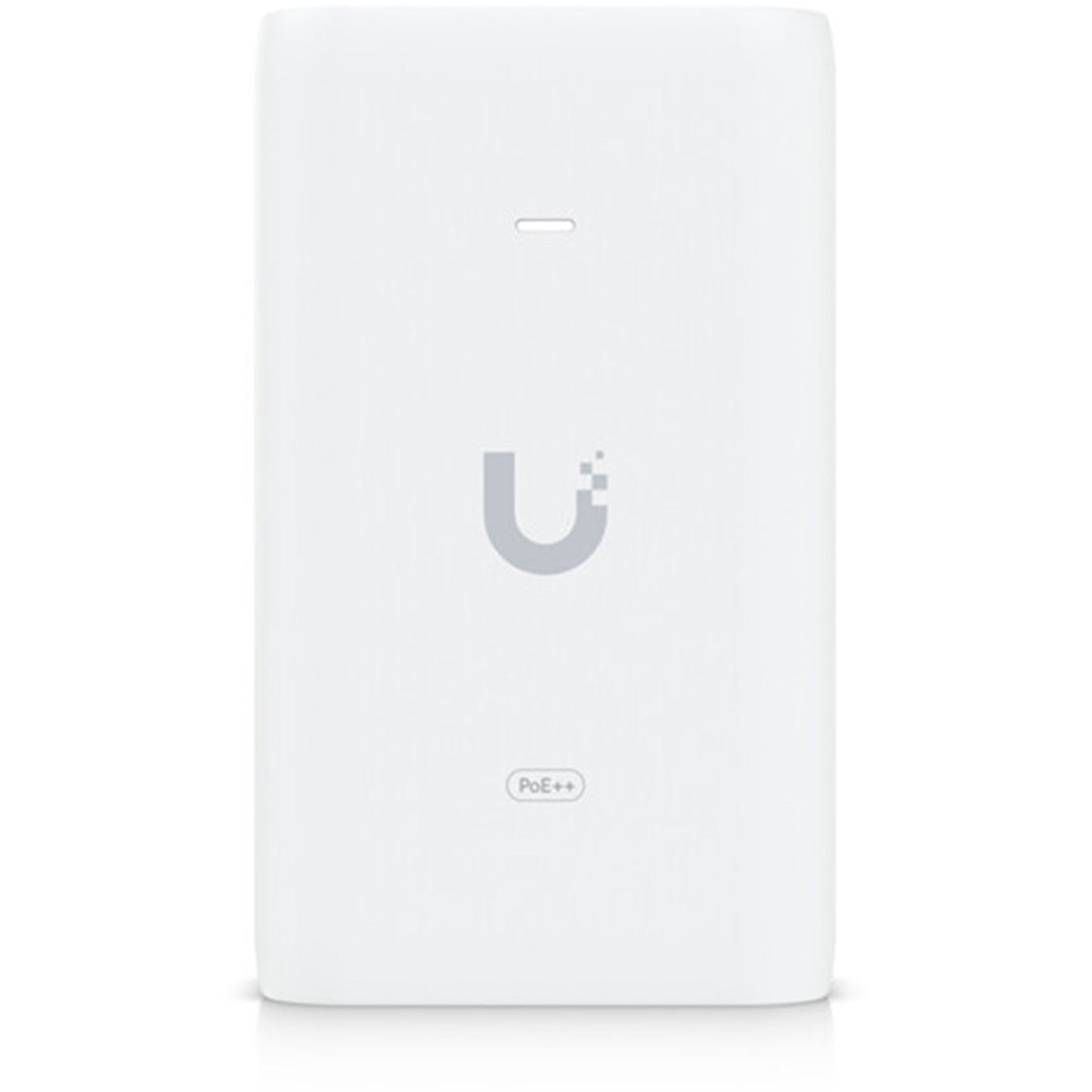

Ubiquiti UniFi U‑PoE++ Adapter
The Ubiquiti UniFi U‑PoE++ Adapter is a versatile, robust power solution designed to supply PoE++ power to UniFi devices. It is particularly suitable for wireless mesh applications or for offloading power requirements from PoE switches.
Delivering up to 60W of PoE++, this adapter provides ample power for devices such as the UA Hub, G4 PTZ, and other PoE++‑compatible equipment. Its compact form factor and Gigabit LAN port make it easy to integrate into a wide range of network setups.

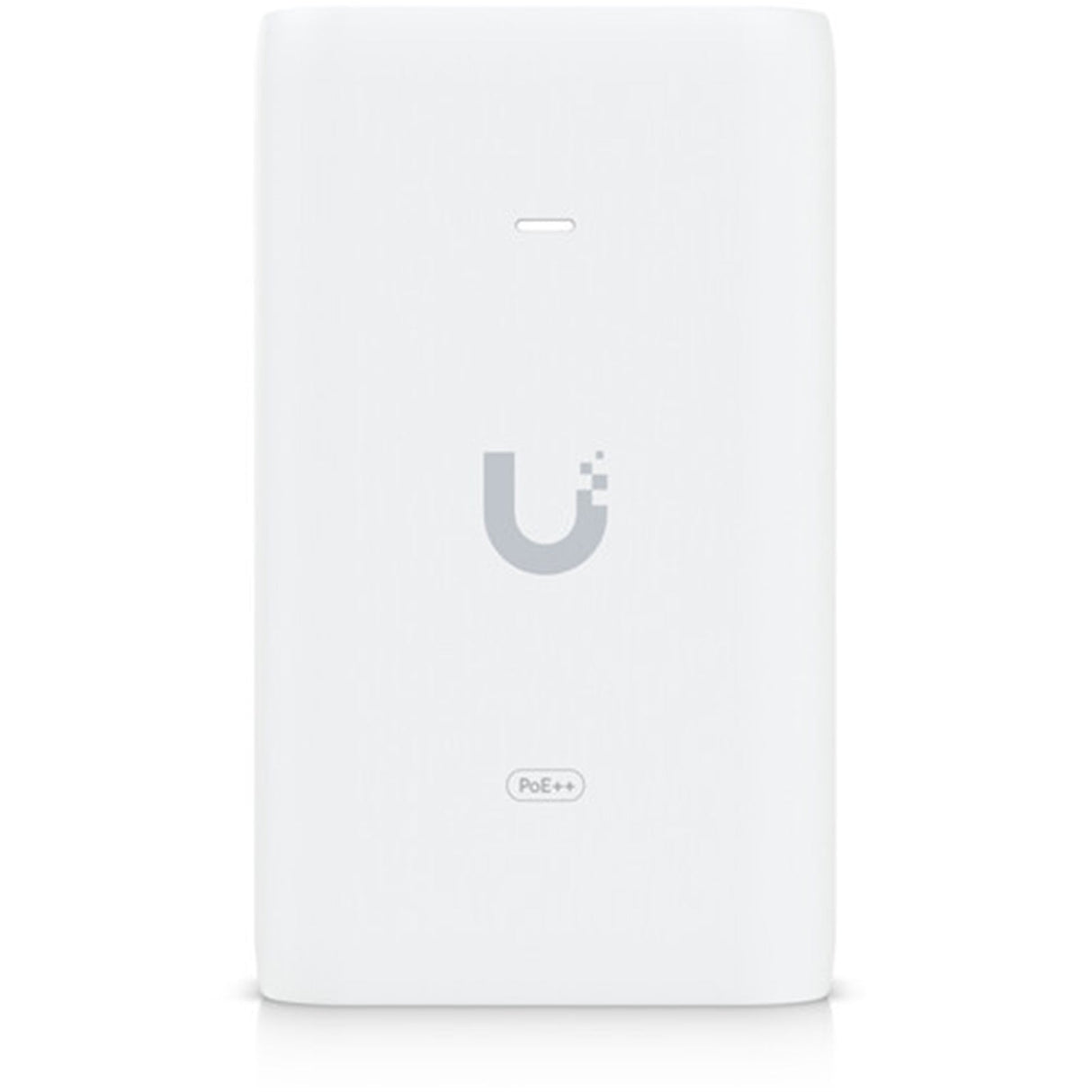

Built‑in surge, peak pulse, and overcurrent protection help safeguard connected devices and enhance long‑term reliability. An LED indicator offers convenient status monitoring.
The UniFi U‑PoE++ Adapter includes an RJ45 data input, an AC cable with earth ground, and a PoE++ output. It operates from a universal 100–240V AC input at 50/60Hz with an efficiency of over 85%, and is certified to multiple international standards, including CE, FCC, IC, UL, UKCA, KC, CCC, KC, and RoHS.
Key Features
- Delivers up to 60W of PoE++ power
- Designed for UniFi PoE++ devices (e.g., UA Hub, G4 PTZ)
- Ideal for wireless mesh deployments or reducing load on PoE switches
- 48V DC @ 1.25A output
- Gigabit LAN port for high‑speed data
- Built‑in surge, peak pulse, and overcurrent protection
- LED indicator for status monitoring
- Universal 100–240V AC, 50/60Hz input
- Includes RJ45 data input and AC cable with earth ground
- Certified to major international standards
Specifications
| Parameter | Value |
|---|---|
| Model | U‑PoE++ |
| Dimensions | 106 x 63 x 34 mm (4.2 x 2.5 x 1.3") |
| Weight | 210 g (7.4 oz) |
| Output voltage | 48V DC @ 1.25A |
| LAN activity indicator | No |
| Gigabit LAN port | Yes |
| Remote reset capability | No |
| Reset button | No |
| Rated voltage | 100—240V AC @ 50/60Hz |
| Input current | 1.3A @ 120V AC; 0.75A @ 230V AC |
| Inrush current | \<100A peak @ 120V AC; \<200A peak @ 230V AC |
| Efficiency | 85+% |
| Output ripple | 1% max. |
| Switching frequency | 65 kHz |
| Line regulation | = 1% |
| Load regulation | = 3% |
| 2‑pair powering | No |
| 4‑pair powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (–) |

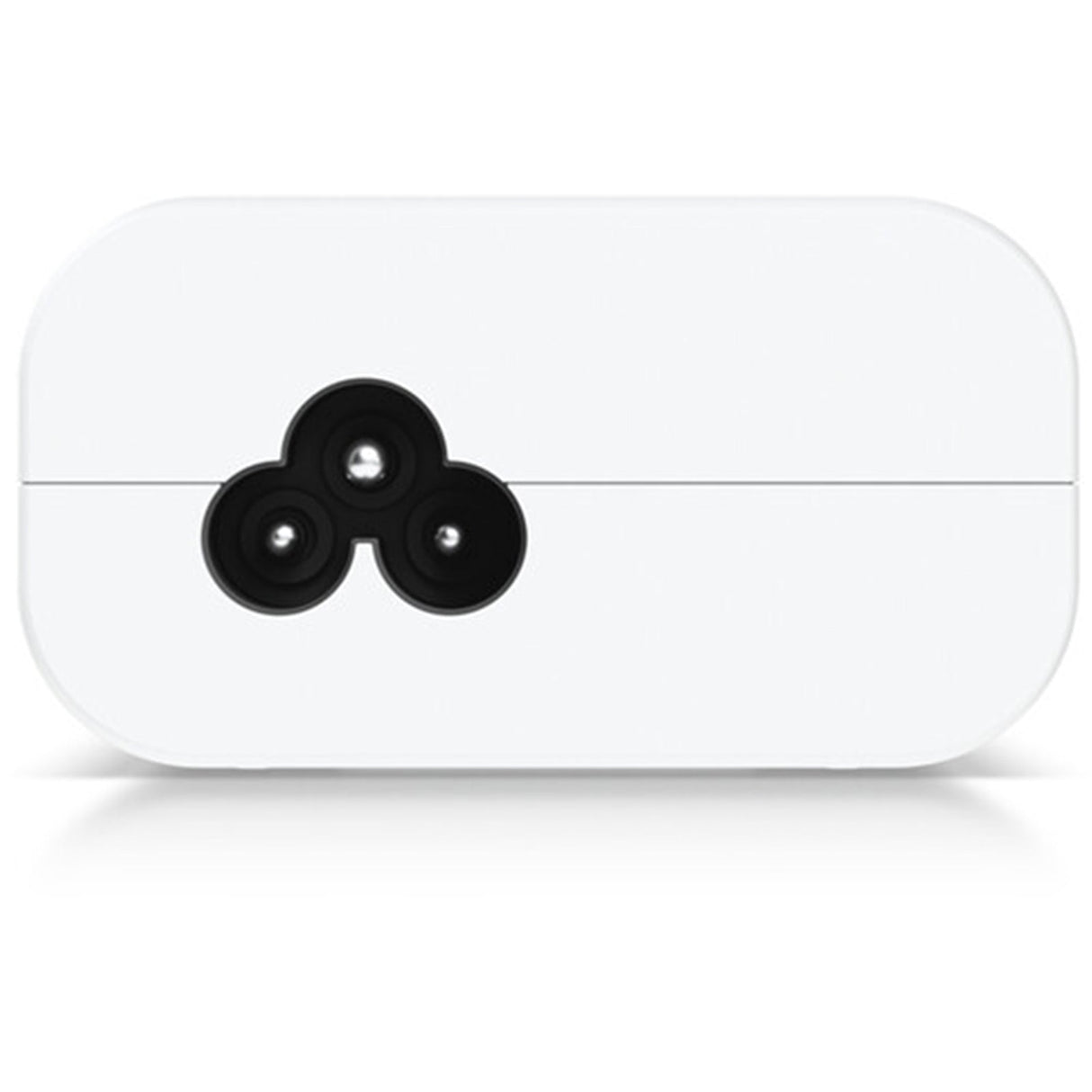

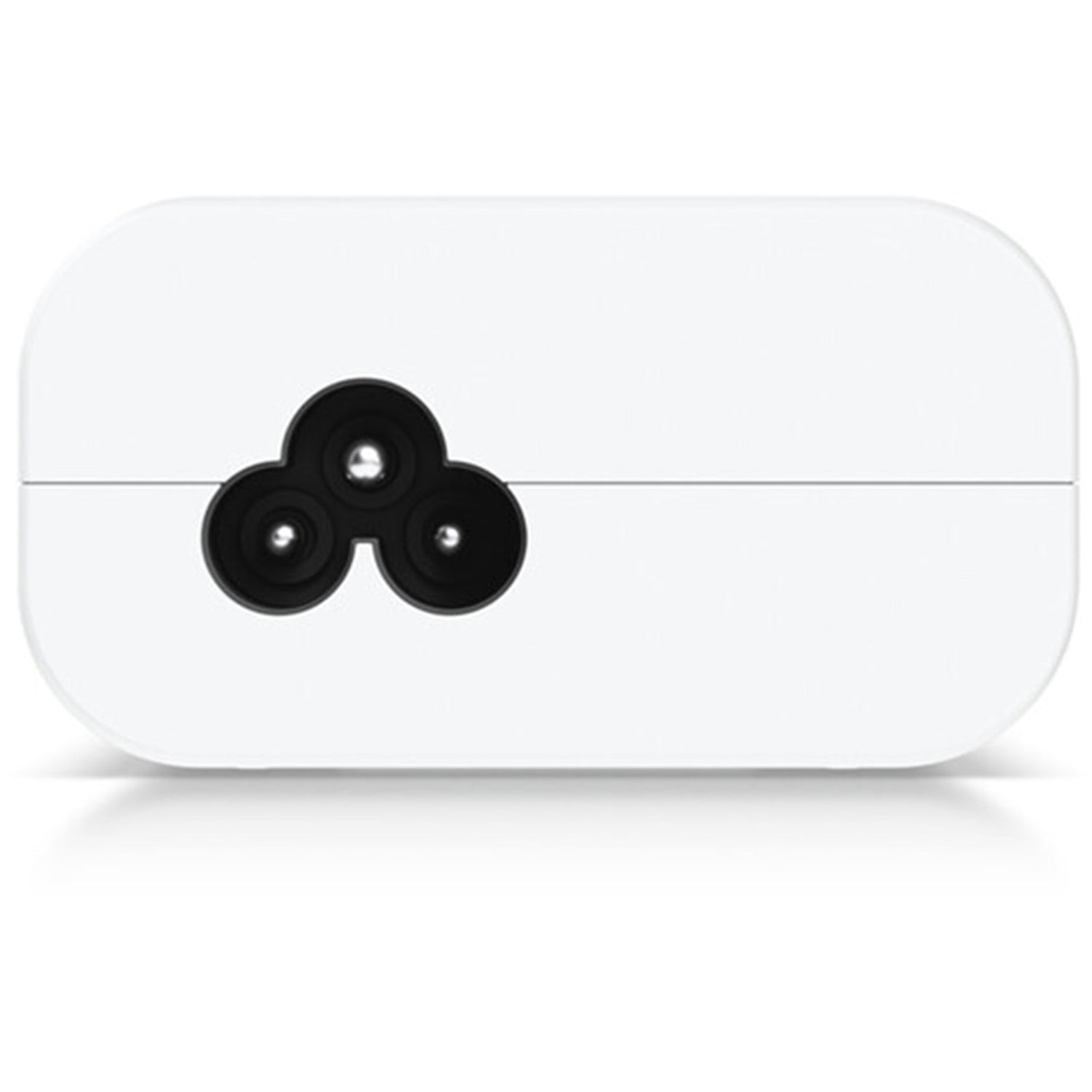

| AC connector | IEC‑320 C6 |

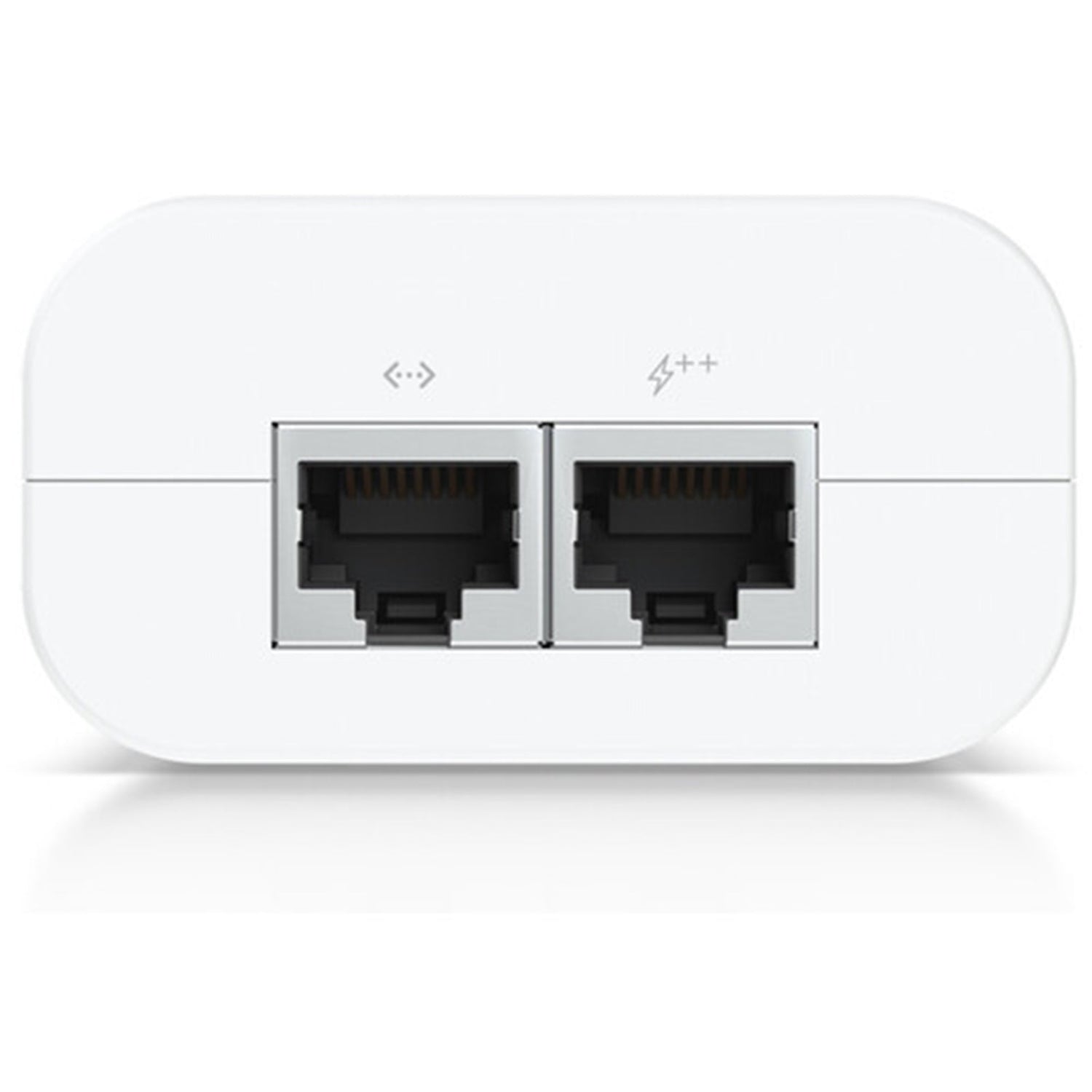

| Data In / PoE | RJ45 shielded socket |
| Surge protection | Difference and common mode |
| Clamping protection | 11V data, 60V power |
| Max. surge discharge | 1500A (8/20 µs) power |
| Peak pulse current | 36A (10/1000 µs) data |
| Shunt capacitance | \<5 pF data |
| Response time | \<1 ns |
| Power method | Universal AC input, 100—240V AC, 50/60Hz, (48V @ 1.25A) |
| Power supply | AC/DC |
| Supported voltage range | 100—240V AC |
| Max. PoE+ wattage per port (PSE) | 60W |
| Operating temperature | 0 to 40° C (32 to 104° F) |
| Storage temperature | -30 to 70° C (-22 to 158° F) |
| Operating humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS |
