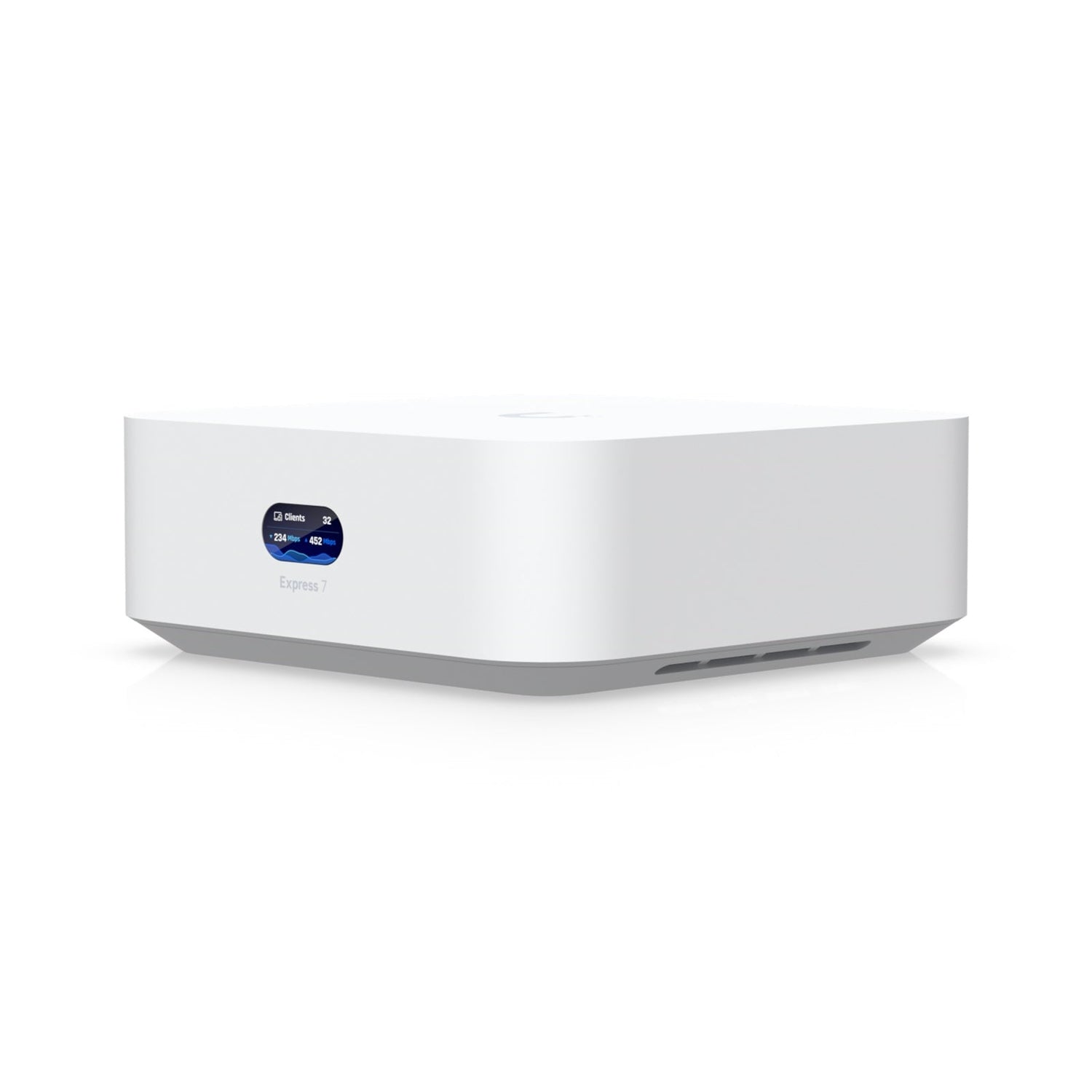

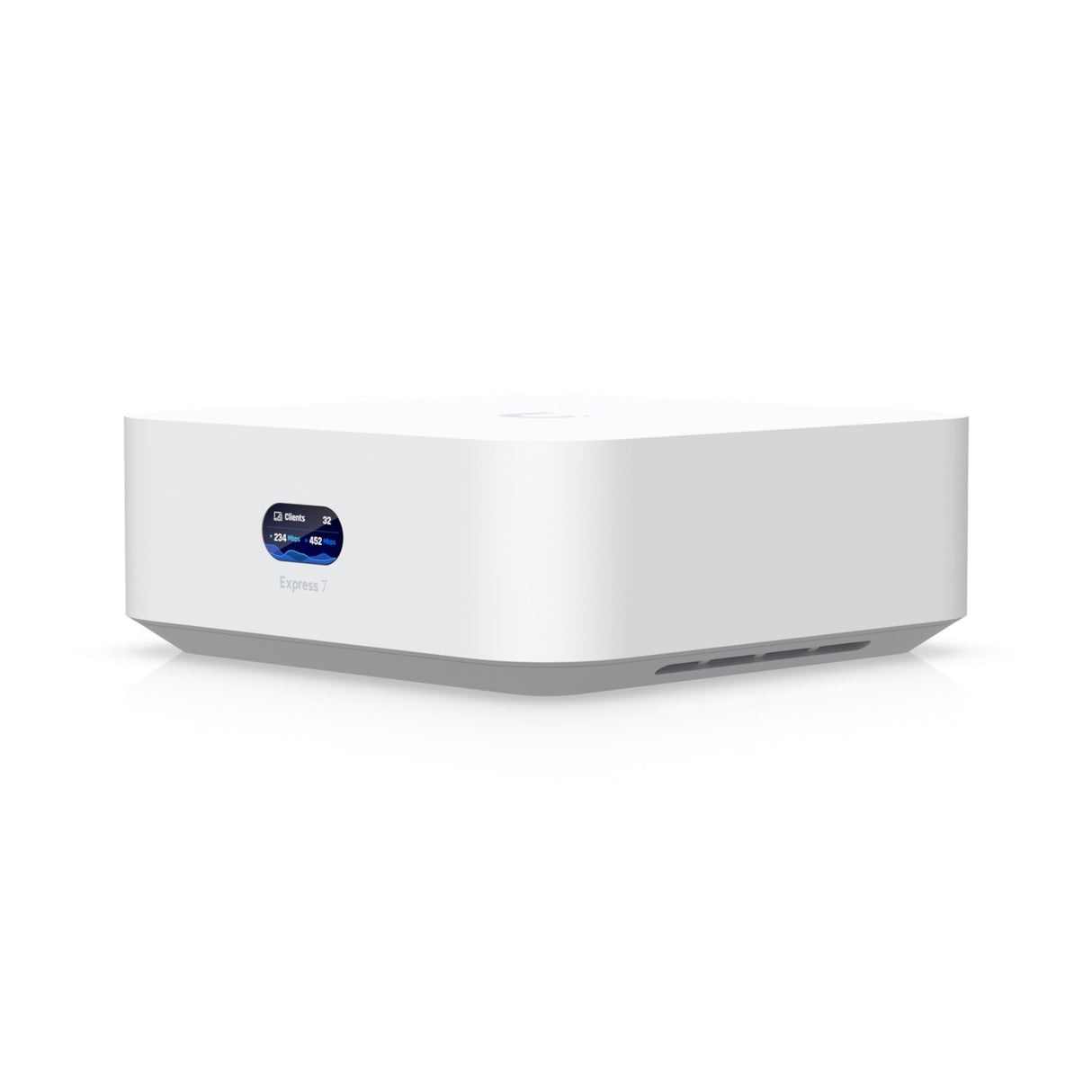

Ubiquiti UX7 UniFi Express 7 Ultra Compact Mesh Scalable Combined Router, WiFi 7 Access Point and Gateway

Ubiquiti UniFi Express 7 (UX7) – WiFi 7 Cloud Gateway & Router

Experience next-generation networking with the Ubiquiti UniFi Express 7 (UX7), a mesh‑scalable, super‑compact 10G cloud gateway with integrated WiFi 7. This powerful all‑in‑one router is designed for seamless connectivity, advanced security, and effortless UniFi integration, making it ideal for homes and small businesses that demand high performance in a compact, easy‑to‑manage device.

With UniFi OS built-in, you get intelligent network management, robust security, and simple setup via the intuitive UniFi app. Upgrade to WiFi 7 and enjoy blazing-fast speeds, low latency, and enhanced coverage with UniFi Express 7.

Key Features

• WiFi 7 all‑in‑one router with 6 GHz support
• Super‑compact 10G cloud gateway with integrated WiFi 7
• Tri‑Band WiFi (2.4 GHz / 5 GHz / 6 GHz) for optimized performance and reduced congestion
• Multi‑gigabit WiFi 7 speeds with 320 MHz channels and 4K‑QAM
• Multi‑Link Operation (MLO) for simultaneous multi‑band data transmission and lower latency
• High-speed wired connectivity for low‑latency networking
• 300+ client capacity

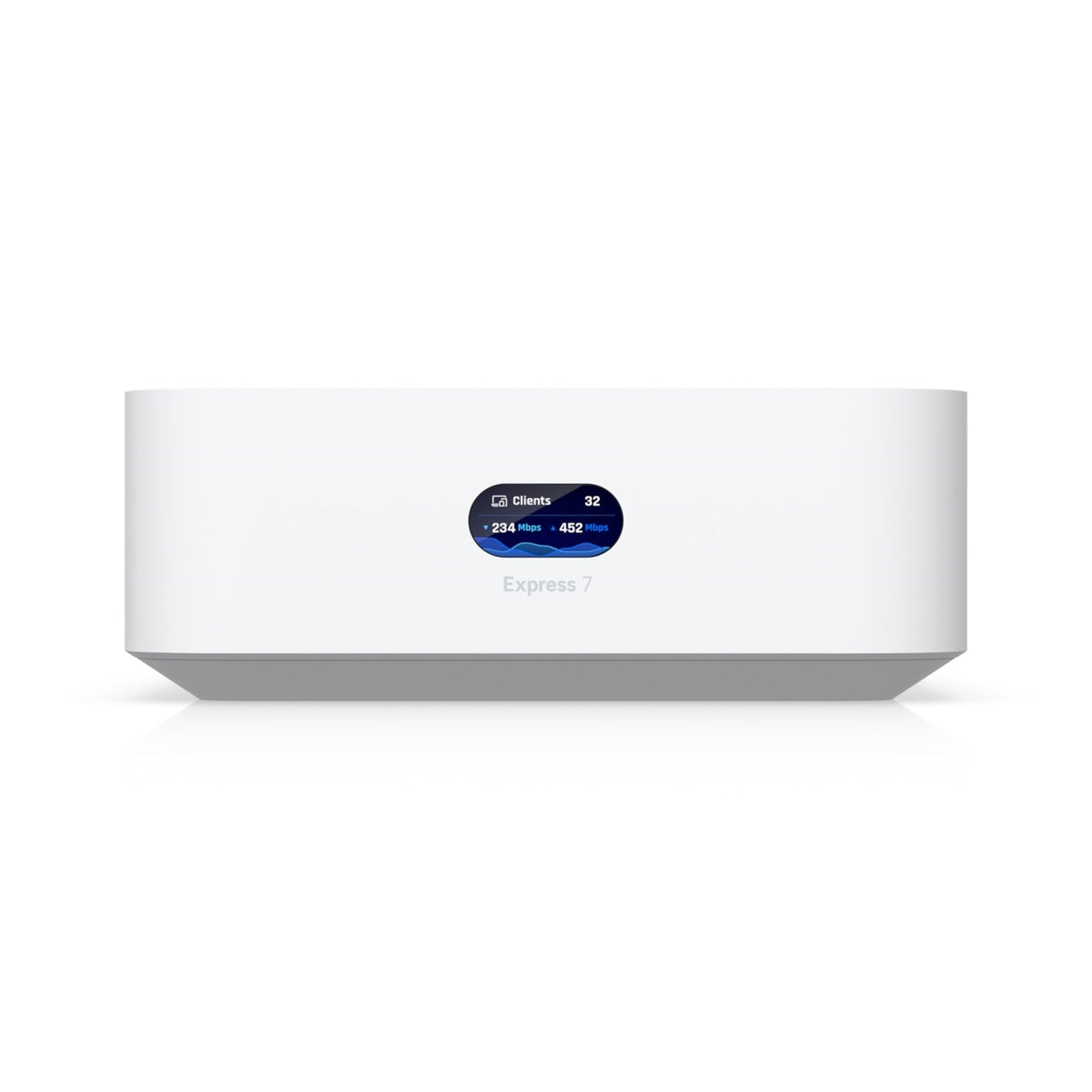

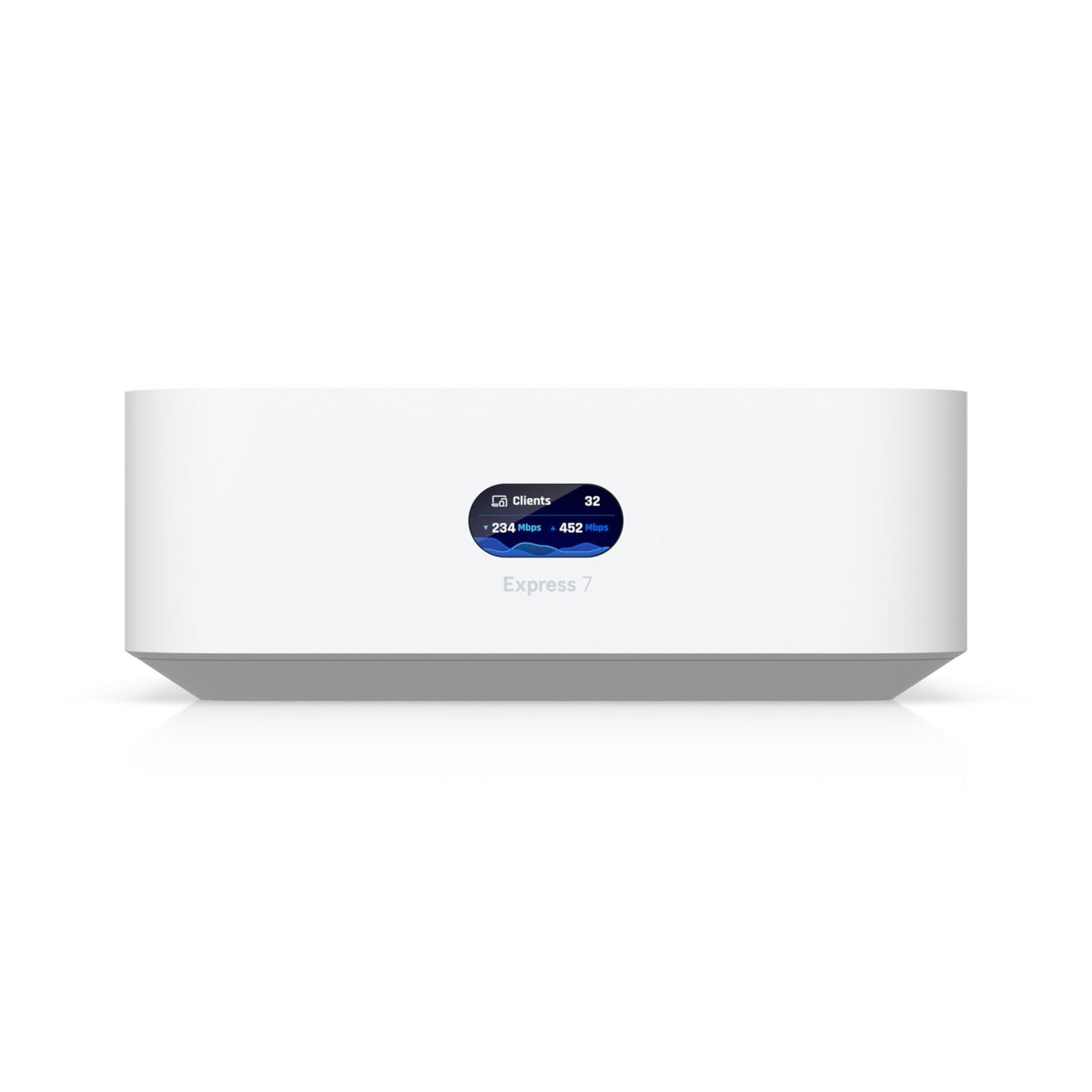

• 0.96" information display for at‑a‑glance status
• Compact desktop form factor

Advanced Security & Network Control

• Stateful firewall
• Application-aware Layer 7 firewall
• Deep Packet Inspection (DPI) and traffic identification
• Zone-based firewall with advanced filtering (regions, domains, apps)
• Content filtering
• Intrusion Prevention (IPS/IDS)
• Ad blocking
• 20,000+ IDS/IPS signatures with CyberSecure
• VLAN/Subnet-based traffic segmentation
• License-free SD-WAN
• Policy-based WAN and VPN routing
• Integrated RADIUS server with RADIUS over TLS (RadSec)
• Customizable DHCP server
• IPv6 ISP support
• IGMP proxy
• Internet quality and outage reporting
• Additional internet failover with UniFi LTE Backup

Comprehensive VPN Capabilities

Site-to-Site VPN

• Site Magic
• IPsec
• OpenVPN
• WireGuard
• L2TP

VPN Server

• Identity Endpoint one-click VPN
• Teleport zero‑configuration VPN
• OpenVPN
• WireGuard

VPN Client

• OpenVPN
• WireGuard

WiFi Performance

• WiFi standard: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
• Tri‑Band throughput:
• 6 GHz: 5.7 Gbps
• 5 GHz: 4.3 Gbps
• 2.4 GHz: 688 Mbps
• MIMO configuration:
• 6 GHz: 2 x 2 (DL/UL MU‑MIMO)
• 5 GHz: 2 x 2 (DL/UL MU‑MIMO)
• 2.4 GHz: 2 x 2 (DL/UL MU‑MIMO)
• Antenna gain:
• 6 GHz: 6 dBi
• 5 GHz: 7 dBi
• 2.4 GHz: 4 dBi
• Wireless security: WPA‑PSK, WPA‑Enterprise (WPA/WPA2/WPA3/PPSK)
• Max. BSSIDs:
• 4 per radio (Gateway Mode)
• 4 per radio (AP Mode)

Supported Data Rates

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
• 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
• 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
• 802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240/320)

UniFi Application Suite

• UniFi Network application support: Yes
• Managed UniFi devices: Up to 30
• Simultaneous users connected: Up to 300

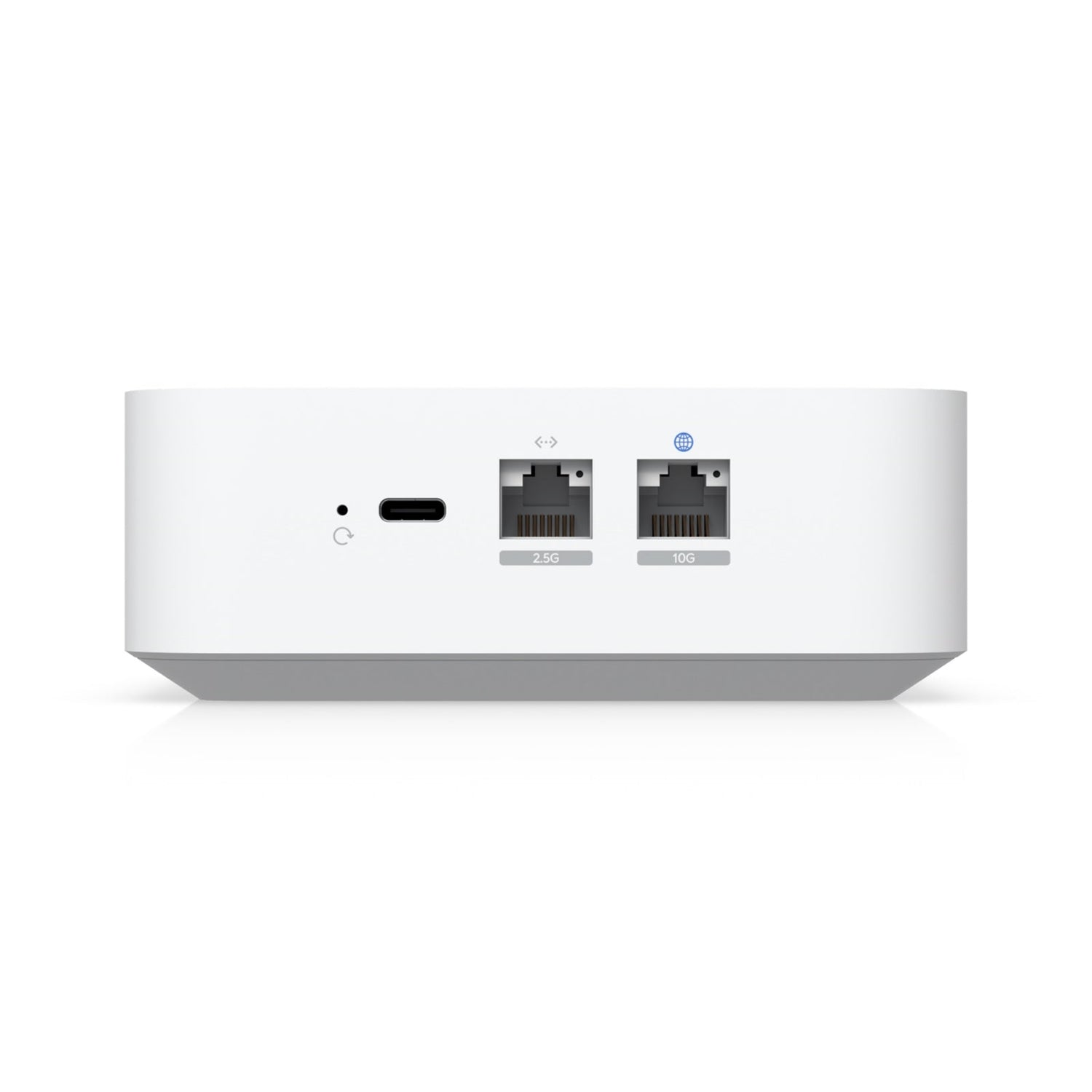

Hardware & Ports

Dimensions

Additional Network Features

• Dynamic routing – OSPF
• Advanced QoS
• Multicast DNS (mDNS)
• Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1‑to‑1 NAT)

Choose the Ubiquiti UniFi Express 7 (UX7) to bring WiFi 7 performance, powerful security, and cloud‑managed simplicity together in one compact, mesh‑scalable gateway.
