ASRock B860I WiFi Intel 1851 Socket Motherboard, Mini-ITX, 2x DDR5 Slots, 2x M.2 Socket, 2.5GbE + 1GbE LAN, Wi-Fi 6E, 1x DisplayPort / 1x HDMI Port

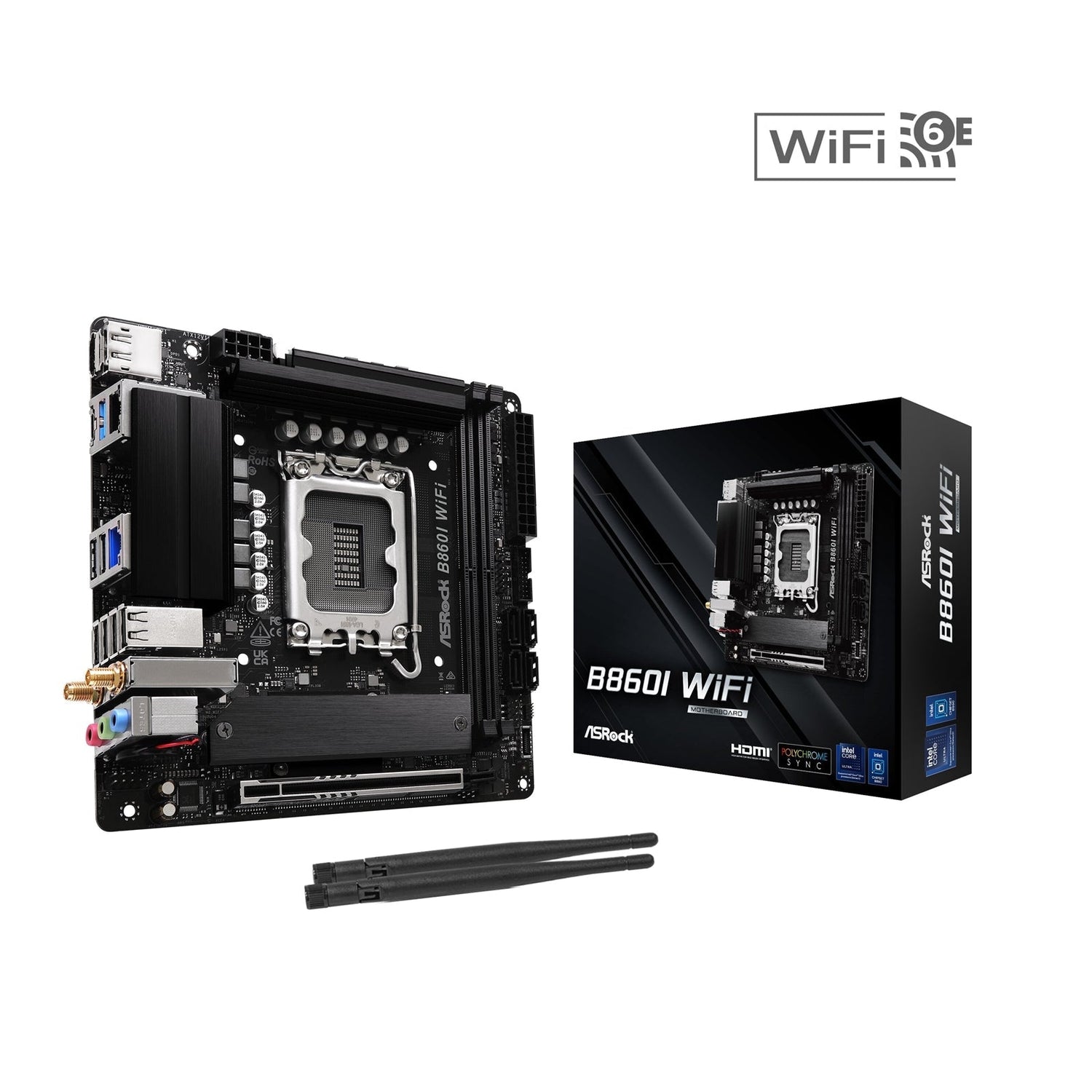

ASRock B860I WiFi Mini-ITX Motherboard

The ASRock B860I WiFi is a Mini-ITX motherboard designed for Intel® Core™ Ultra Processors (Series 2), delivering superb productivity, rock-solid durability, and ultrafast connectivity in a compact form factor.

Key Features

Superb Productivity

• PCIe Gen5 support for graphics and M.2
• Dual Channel DDR5 memory support

Rock-Solid Durability

• 8+1+1+1+1 power phase design
• SPS for VCore + GT + VCCSA

Ultrafast Connectivity

• 2.5G LAN (Dragon RTL8125BG)
• 802.11axe Wi-Fi 6E module
• Bluetooth 5.3

EZ Update

• ASRock Auto Driver Installer

CPU Support

• Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
• Supports Intel® Hybrid Technology
• Supports Intel® Turbo Boost Max 3.0 Technology
• Supports Intel® Thermal Velocity Boost (TVB)
• Supports Intel® Adaptive Boost Technology (ABT)
• Integrated NPU for dedicated AI acceleration

Chipset

• Intel® B860

Memory

• Dual Channel DDR5 Memory Technology
• 2 x DDR5 DIMM slots
• Supports DDR5 non-ECC, un-buffered memory up to 8933+ (OC)*
• Supports Clocked Unbuffered DIMM (CUDIMM)
• Maximum system memory capacity: 128GB
• Supports Intel® Extreme Memory Profile (XMP) 3.0

BIOS

• 256Mb AMI UEFI Legal BIOS with GUI support

Graphics

• Intel® Xe LPG Graphics Architecture
• 1 x HDMI 2.1 TMDS/FRL 8G compatible, supports HDR, HDCP 2.3, max resolution up to 4K 120Hz
• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3, max resolution up to 8K 60Hz / 5K 120Hz

Audio

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Nahimic Audio

LAN

• 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
• Supports Dragon 2.5G LAN Software
• Smart Auto Adjust Bandwidth Control
• Visual user-friendly UI
• Visual network usage statistics
• Optimized default settings for Game, Browser, and Streaming modes

• User customized priority control

• 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V)

Wireless LAN & Bluetooth

• 802.11axe Wi-Fi 6E Module
• Supports IEEE 802.11a/b/g/n/ac/ax/axe
• Supports Dual-Band 2x2 with extended 6GHz band support*
• 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
• Supports Bluetooth 5.3
• Supports MU-MIMO

Expansion Slots

CPU: - 1 x PCIe 5.0 x16 slot (PCIE1), supports x16 mode*

Chipset: - 1 x Vertical M.2 socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Storage

CPU: - 1 x Blazing M.2 socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*

Chipset: - 1 x Hyper M.2 socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s connectors

RAID

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB Connectivity

CPU: - 1 x USB 3.2 Gen2x2 Type-C (Rear)

Chipset: - 1 x USB 3.2 Gen2 Type-C (Front)
- 1 x USB 3.2 Gen2 Type-A (Rear)
- 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
- 6 x USB 2.0 (4 Rear, 2 Front)

Internal Connectors

• 1 x Addressable LED header*
• 1 x CPU fan connector (4-pin) (Smart Fan Speed Control)**
• 1 x Chassis fan connector (4-pin) (Smart Fan Speed Control)**
• 1 x AIO pump fan connector (4-pin) (Smart Fan Speed Control)***
• 1 x 24-pin ATX power connector
• 1 x 8-pin 12V power connector (Hi-Density Power Connector)
• 1 x Front panel audio connector
• 1 x USB 2.0 header (supports 2 USB 2.0 ports)
• 1 x USB 3.2 Gen1 header (supports 2 USB 3.2 Gen1 ports)
• 1 x Front panel Type-C USB 3.2 Gen2 header (10 Gb/s)

Rear Panel I/O

• 2 x Antenna ports
• 1 x HDMI port
• 1 x DisplayPort 1.4
• 1 x USB 3.2 Gen2x2 Type-C port (20 Gb/s)
• 1 x USB 3.2 Gen2 Type-A port
• 2 x USB 3.2 Gen1 ports
• 4 x USB 2.0 ports
• 2 x RJ-45 LAN ports
• HD Audio jacks: Line in / Front Speaker / Microphone

Software & UEFI

Software: - ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC*

UEFI: - ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash

Accessories

• 1 x I/O shield
• 2 x SATA data cables
• 2 x ASRock WiFi 2.4/5/6 GHz antennas
• 2 x Screws for M.2 sockets

Form Factor

• Mini-ITX Form Factor: 6.7 in x 6.7 in (17.0 cm x 17.0 cm)

Operating System Support

• Microsoft Windows® 11 64-bit

Certifications

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
