Gigabyte A620M S2H AMD AM5 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 1x DisplayPort / 1x HDMI Port
$143.00

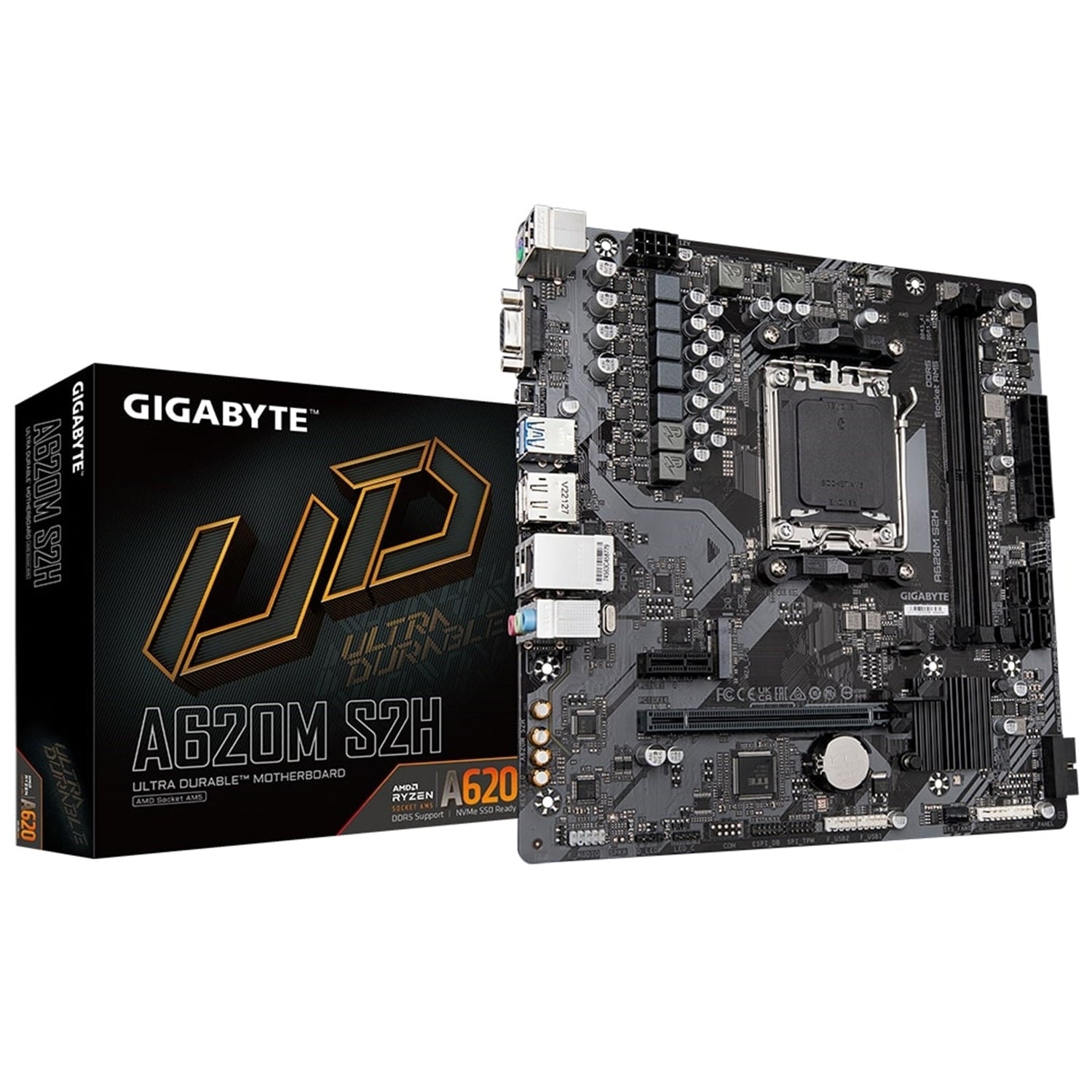

GIGABYTE A620M S2H Motherboard (AMD Socket AM5)
Key Features
- AMD Socket AM5 Support
- Supports AMD Ryzen™ 7000 Series processors
- Supports AMD Ryzen™ 8000 Series processors
-
Supports AMD Ryzen™ 9000 Series processors
-
Unparalleled Performance
-
5+2+2 phases digital VRM solution
-
High-Speed DDR5 Memory
- Dual channel DDR5
- 2 x SMD DIMM slots
-
Supports AMD EXPO™ and Intel® XMP memory modules
-
SuperSpeed Storage
-
PCIe 4.0 x4 M.2 connector
-
EZ-Latch
-
PCIe x16 slot with quick release design
-
Fast Networking
-
GbE LAN
-
Extended Connectivity
- DisplayPort
- HDMI
-
D-Sub
-
Smart Fan 6
- Multiple temperature sensors
-
Hybrid fan headers with FAN STOP
-
Q-Flash Plus
- Update BIOS without installing CPU, memory, or graphics card
Specifications
CPU
| Item | Description |
|---|---|
| Socket | AMD Socket AM5 |
| CPU Support | AMD Ryzen™ 9000 / 8000 / 7000 Series Processors |
| Note | For the latest CPU support, please refer to GIGABYTE’s website. |
Chipset
| Item | Description |
|---|---|
| Chipset | AMD A620 |
Memory
| Item | Description |
|---|---|
| Memory Type | DDR5 |
| Supported Speeds | DDR5 7200(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s |
| Slots | 2 x DDR5 DIMM sockets |
| Maximum Capacity | Up to 128 GB (64 GB per DIMM) |
| Architecture | Dual channel memory architecture |
| Module Support | Non-ECC un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 |
| Profile Support | AMD EXtended Profiles for Overclocking (AMD EXPO™), Extreme Memory Profile (XMP) |
| Note | CPU and memory configuration may affect supported types, speeds, and module count. Refer to the Memory Support List for details. |
BIOS
| Item | Description |
|---|---|
| Flash ROM | 1 x 256 Mbit flash |
| Type | AMI UEFI BIOS (licensed) |
| Standards | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Graphics (Integrated Graphics Processor)
| Output | Max Resolution | Standard / Notes |
|---|---|---|
| D-Sub | 1920 x 1200 @ 60 Hz | — |
| DisplayPort | 3840 x 2160 @ 144 Hz | DisplayPort 1.4 |
| HDMI | 4096 x 2160 @ 60 Hz | HDMI 2.1, HDCP 2.3, native HDMI 2.1 TMDS compatible |
- Supports up to 3 displays simultaneously
- Graphics specifications may vary depending on CPU support
Audio
| Item | Description |
|---|---|
| Codec | Realtek® Audio CODEC |
| Audio | High Definition Audio |
| Channels | 2 / 4 / 5.1 / 7.1-channel* |
* Audio jack functionality can be changed using the audio software. To configure 7.1-channel audio, use the audio software for settings.
LAN
| Item | Description |
|---|---|
| Controller | Realtek® GbE LAN chip |
| Speeds | 1 Gbps / 100 Mbps / 10 Mbps |
| Wireless | N/A |
Expansion Slots
| Source | Slot | Standard / Mode |
|---|---|---|
| CPU | 1 x PCI Express x16 slot | Ryzen™ 7000: PCIe 4.0 x16 mode |
| Ryzen™ 8000 Phoenix 1: PCIe 4.0 x8 mode | ||
| Ryzen™ 8000 Phoenix 2: PCIe 4.0 x4 mode | ||
| Chipset | 1 x PCI Express x1 slot | PCIe 3.0 x1 |
- The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Storage
| Connector | Interface | Support |
|---|---|---|
| 1 x M.2 (Socket 3, M key, type 2580) | Integrated in CPU | Ryzen™ 7000: PCIe 4.0 x4/x2 SSDs |
| Ryzen™ 8000 Phoenix 1: PCIe 4.0 x4/x2 SSDs | ||
| Ryzen™ 8000 Phoenix 2: PCIe 4.0 x4/x2 SSDs | ||
| 4 x SATA connectors | SATA 6 Gb/s | SATA storage devices |
RAID
| Item | Description |
|---|---|
| NVMe RAID | RAID 0, RAID 1, RAID 10 support for NVMe SSDs |
| SATA RAID | RAID 0, RAID 1, RAID 10 support for SATA storage devices |
USB
| Source | Ports | Location |
|---|---|---|
| CPU | 2 x USB 3.2 Gen 1 | Back panel |
| CPU | 1 x USB 2.0/1.1 | Back panel |
| Chipset | 2 x USB 3.2 Gen 1 | Via internal header |
| Chipset | 7 x USB 2.0/1.1 | 3 ports on back panel, 4 via internal headers |
Internal Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 2 x system fan headers
- 1 x addressable LED strip header
- 1 x RGB LED strip header
- 1 x M.2 Socket 3 connector
- 4 x SATA 6 Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (for GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
- 1 x Clear CMOS jumper
Rear Panel I/O
- 4 x USB 2.0/1.1 ports
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x Q-Flash Plus button
- 2 x USB 3.2 Gen 1 ports
- 1 x DisplayPort
- 1 x HDMI port
- 1 x RJ-45 LAN port
- 3 x audio jacks
Form Factor
| Item | Description |
|---|---|
| Form Factor | Micro ATX |
| Dimensions | 23.0 cm x 22.5 cm |
Operating System Support
- Windows 11 64-bit
- Windows 10 64-bit
