Gigabyte B650 EAGLE AMD AM5 Socket Motherboard, ATX, 4x DDR5 Slots, 3x M.2 Sockets, Fitted I/O Shield, GbE LAN, 1x DisplayPort / 1x HDMI Port

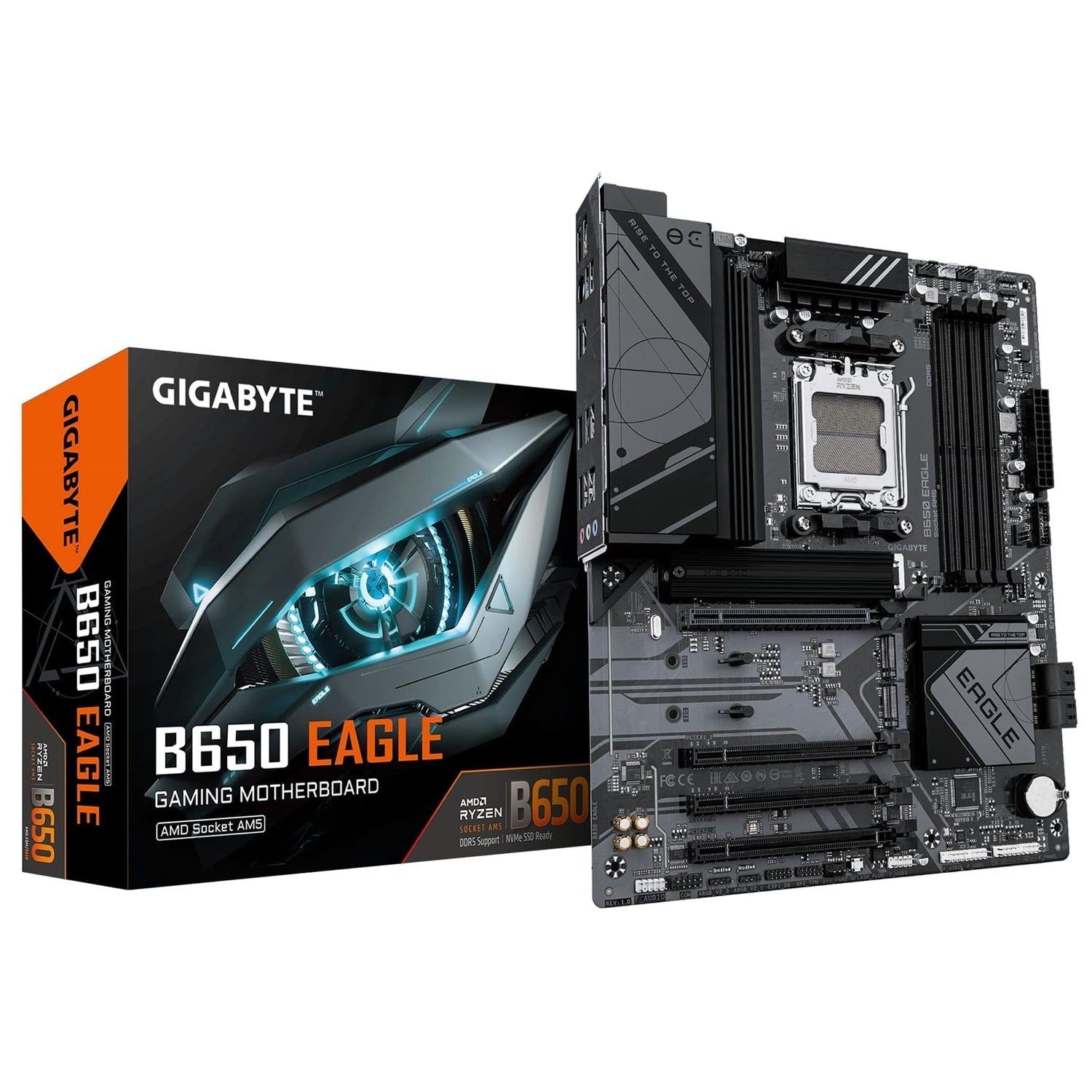

GIGABYTE B650 EAGLE Motherboard (AMD Socket AM5)

The GIGABYTE B650 EAGLE motherboard delivers a solid platform for AMD Ryzen 7000, Ryzen 8000, and Ryzen 9000 Series processors, combining robust power delivery, advanced thermal solutions, high-speed storage, and flexible connectivity in a durable ATX design.

Key Features

AMD AM5 Platform Support

• Socket: AMD Socket AM5
• CPU Support: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors

Power & Performance

• 12+2+2 Phases Digital VRM Solution for stable and efficient power delivery
• Digital VRM Design using high-quality components
• GIGABYTE Ultra Durable construction for long-lasting, reliable performance

Memory Performance

• Dual Channel DDR5
• 4 x SMD DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM)
• Supports DDR5 7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s
• Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 modules
• AMD EXPO™ & Intel XMP memory profile support
• DDR5 EXPO & XMP overclocking up to 7600 and beyond (platform tested and proven by GIGABYTE)

Storage & Expansion

• SuperSpeed Storage:
• 1 x PCIe 5.0 M.2 connector
• 2 x PCIe 4.0 M.2 connectors
• PCIe Slots:
• 1 x PCIe x16 slot (from CPU)
• 1 x PCIe x16 physical slot (x1 mode, PCIe 3.0 from chipset)
• PCIe 4.0 Hardware Design ready for PCIe 4.0 x16 and PCIe 4.0 M.2 devices
• RAID Support: RAID 0, 1, 10 for both NVMe and SATA storage devices

Advanced Thermal Design

• Fully Covered MOSFET Heatsink
• M.2 Thermal Guard for enhanced 25110 M.2 SSD performance and stability
• Designed to ensure VRM power stability and sustained SSD performance

Networking & Connectivity

• Fast Networks: Realtek GbE LAN (1 Gbps/100 Mbps/10 Mbps)
• Bandwidth Management to help reduce latency and maintain low ping times in busy LAN environments
• Extended Connectivity:
• DisplayPort and HDMI outputs
• Rear USB 10Gb/s (USB 3.2 Gen 2)
• USB Type-C on rear and via internal header

Audio

• Realtek High Definition Audio CODEC
• 2/4/5.1/7.1-channel audio support
• High-End Audio Capacitors for high-resolution, high-fidelity sound
• Audio Noise Guard design to isolate sensitive audio components from PCB-level noise

Cooling & Fan Control – Smart Fan 6

• Supports PWM/DC fans and pumps with customizable control
• High Current Support: Each fan header supports up to 24W (12V x 2A) with over-current protection
• Precision Control: Multiple temperature and fan speed control points for accurate fan curves
• Dual Curve Mode:
• Slope mode – linear fan speed curve
• Stair mode – constant fan speed within set temperature intervals
• Fan Stop: Fans can stop completely below user-defined temperature thresholds

Smart Fan 6 BIOS UI Enhancements: - Enhanced fan curve control with more points (from 5 to 7) and larger fan speed graph
- Slope/Stair dual graph mode
- Manual input for advanced fan speed tuning
- EZ Tuning: set 4 simple temperature/fan speed points to auto-generate a curve
- Fan curve profile saving in BIOS ROM, retained after BIOS updates

Easy Installation & User-Friendly Design

EZ-Latch

• PCIe x16 Slot with Quick Release Design
• Easily unlock the PCIe latch to remove graphics cards without hassle

Q-Flash Plus

• Update BIOS without CPU, memory, or graphics card installed

Q-Flash Plus Steps: 1. Plug the 24-pin and 8-pin power supply cables into the motherboard.
2. Download the motherboard BIOS file, rename it to "gigabyte.bin", save it to a FAT32-formatted USB flash drive, and insert it into the Q-FLASH PLUS USB port.
3. Press the Q-FLASH PLUS button to start automatic BIOS updating.

Software & Management

• Support for GIGABYTE Control Center (GCC)
• Support for Q-Flash and Q-Flash Plus
• Included software: Norton Internet Security (OEM version), LAN bandwidth management software

Specifications

General

CPU

Memory

Onboard Graphics

Audio

LAN

Expansion Slots

Storage

RAID Support: - NVMe SSDs: RAID 0, 1, 10
- SATA drives: RAID 0, 1, 10

USB

CPU: - 2 x USB 3.2 Gen 2 Type-A (red, rear panel)
- 1 x USB Type-C (rear panel) with USB 3.2 Gen 1 support

CPU + USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on rear panel

Chipset: - 2 x USB 3.2 Gen 1 ports via internal header
- 1 x USB Type-C with USB 3.2 Gen 1 support via internal header
- 4 x USB 2.0/1.1 ports (2 on back panel, 2 via internal header)

Chipset + USB 2.0 Hub: - 4 x USB 2.0/1.1 ports via internal headers

Internal I/O Connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 2 x system fan headers
• 1 x system fan/water cooling pump header
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 3 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C header (USB 3.2 Gen 1)
• 1 x USB 3.2 Gen 1 header
• 3 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (for GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2)
• 1 x Q-Flash Plus button
• 1 x serial port header
• 1 x Clear CMOS jumper

Back Panel Connectors

• 1 x DisplayPort
• 1 x HDMI port
• 1 x PS/2 keyboard/mouse combo port
• 1 x USB Type-C (USB 3.2 Gen 1)
• 2 x USB 3.2 Gen 2 Type-A (red)
• 6 x USB 2.0/1.1 ports
• 1 x RJ-45 LAN port
• 3 x audio jacks

I/O Controller & Monitoring

BIOS

• 1 x 256 Mbit flash
• AMI UEFI BIOS (licensed)
• Standards: PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Operating System Support

• Windows 11 64-bit
• Windows 10 64-bit

The GIGABYTE B650 EAGLE combines durable hardware, flexible connectivity, advanced cooling control, and straightforward BIOS update features, making it a strong AM5 foundation for modern AMD Ryzen systems.
