Gigabyte B650M GAMING PLUS WIFI (Rev.1.2) AMD AM5 Socket Motherboard, Micro-ATX, 4x DDR5 Slots, 2x M.2 Socket, Fitted I/O Shield, 2.5GbE LAN, Wi-Fi 6, 2x DisplayPort / 1x HDMI Port
$210.00

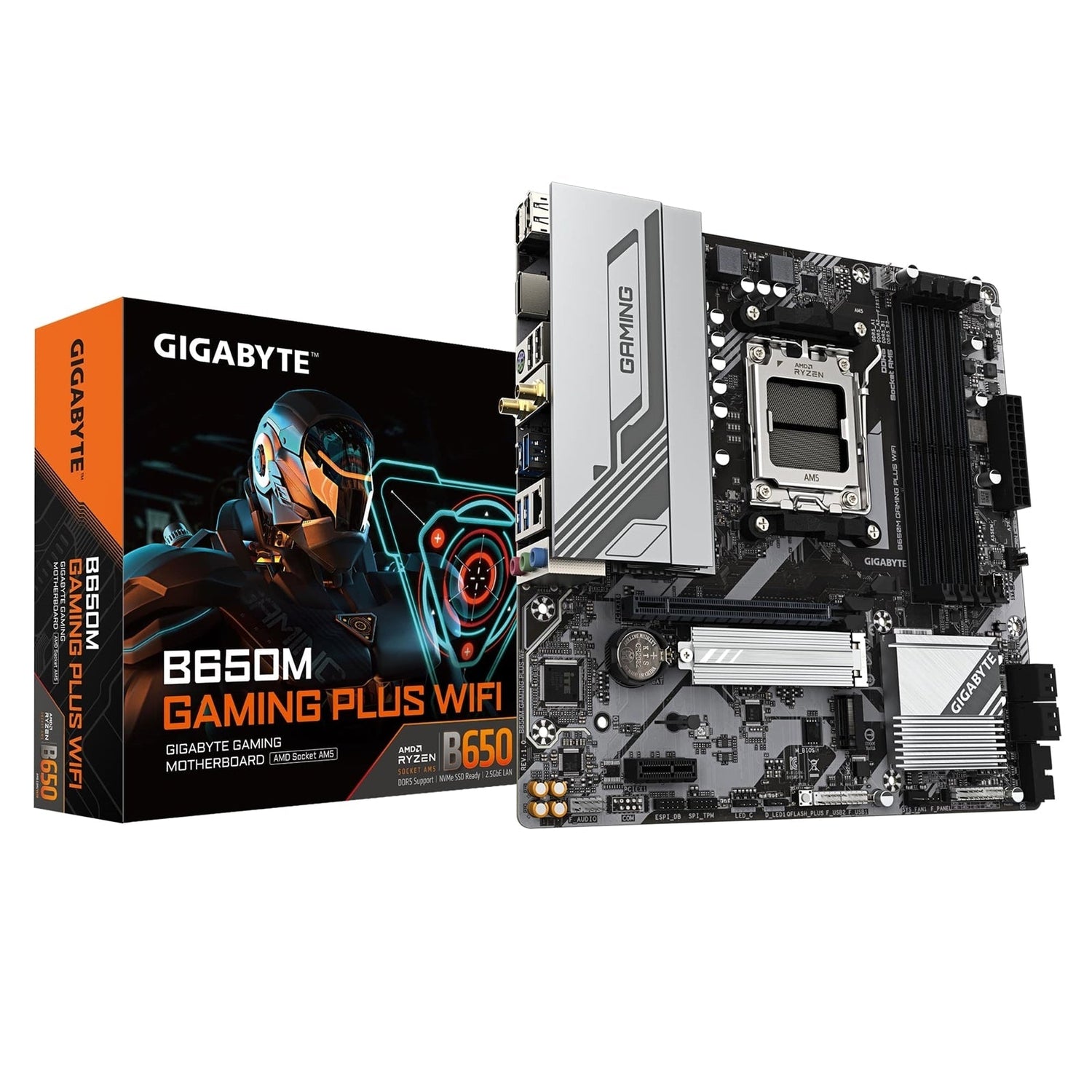

B650M GAMING PLUS WIFI Motherboard
The B650M GAMING PLUS WIFI is a micro ATX motherboard designed for AMD Socket AM5, delivering advanced performance, fast connectivity, and efficient cooling control in a compact form factor.
Key Features
AMD Socket AM5 Support
- Compatible with:
- AMD Ryzen™ 9000 Series Processors
- AMD Ryzen™ 8000 Series Processors
- AMD Ryzen™ 7000 Series Processors
Unparalleled Performance
- 5+2+2 phases digital VRM solution
High-Speed DDR5 Memory
- Dual channel DDR5
- 4 x SMD DIMM slots
- Supports AMD EXPO™ and Intel® XMP memory modules
SuperSpeed Storage
- PCIe 4.0 x4 M.2 connector
EZ-Latch
- PCIe x16 slot with quick release design
Fast Networking
- Wi-Fi 802.11ax
- 2.5GbE LAN
Extended Connectivity
- 2 x DisplayPort
- 1 x HDMI
Smart Fan 6
- Multiple temperature sensors
- Hybrid fan headers with FAN STOP
Q-Flash Plus
- Update BIOS without installing CPU, memory, or graphics card
Specifications
CPU
| Specification | Details |
|---|---|
| Socket | AMD Socket AM5 |
| Supported CPUs | AMD Ryzen™ 9000 / 8000 / 7000 Series Processors |
| Note | For the latest CPU support list, refer to GIGABYTE’s website. |
Chipset
| Specification | Details |
|---|---|
| Chipset | AMD B650 |
Memory
| Specification | Details |
|---|---|
| Supported Memory | DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 MT/s |
| DIMM Slots | 4 x DDR5 DIMM sockets |
| Max Capacity | Up to 256 GB (64 GB per DIMM) |
| Architecture | Dual channel memory architecture |
| Module Support | Non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 |
| Profile Support | AMD EXPO™ and XMP memory modules |
| Note | CPU and memory configuration may affect supported types, speeds, and module count. Refer to GIGABYTE’s Memory Support List for details. |
BIOS
| Specification | Details |
|---|---|
| Flash ROM | 1 x 256 Mbit flash |
| BIOS Type | Licensed AMI UEFI BIOS |
| Compliance | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Graphics
| Specification | Details |
|---|---|
| Integrated Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support |
| DisplayPort | 2 x DisplayPort, max 3840x2160@144 Hz, DisplayPort 1.4 |
| HDMI | 1 x HDMI, max 4096x2160@60 Hz, HDMI 2.1, HDCP 2.3, native HDMI 2.1 TMDS compatible |
| Multi-Display | Supports up to triple-display simultaneously |
| Note | Graphics specifications may vary depending on CPU support. |
Audio
| Specification | Details |
|---|---|
| Codec | Realtek® Audio CODEC |
| Audio | High Definition Audio |
| Channels | 2 / 4 / 5.1 / 7.1-channel* |
* Audio jack functionality can be changed using the audio software. Configure 7.1-channel audio in the audio software.
LAN
| Specification | Details |
|---|---|
| Controller | Realtek® 2.5GbE LAN chip |
| Speeds | 2.5 Gbps / 1 Gbps / 100 Mbps |
Wireless LAN
| PCB Revision | Specification |
|---|---|
| PCB rev. 1.0 | Realtek® Wi-Fi 6E RTL8852CE: Wi-Fi a/b/g/n/ac/ax, 2.4/5/6 GHz bands, Bluetooth 5.3, 11ax 160MHz wireless |
| PCB rev. 1.1/1.2 | Realtek® Wi-Fi 6 RTL8851BE: Wi-Fi a/b/g/n/ac/ax, 2.4/5 GHz bands, Bluetooth 5.3, 11ax 80MHz wireless |
Expansion Slots
| Slot | Source | Details |
|---|---|---|
| 1 x PCIEX16 | CPU | AMD Ryzen™ 7000 / 9000: PCIe 4.0 x16 mode; AMD Ryzen™ 8000 Phoenix 1: PCIe 4.0 x8; AMD Ryzen™ 8000 Phoenix 2: PCIe 4.0 x4* |
| 1 x PCIEX1 | Chipset | PCIe 3.0 x1 |
* The PCIEX16 slot can support only a graphics card or an NVMe SSD.
Storage
| Connector | Source | Supported Devices |
|---|---|---|
| 1 x M2A_CPU | CPU | Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSDs (Ryzen™ 7000 / 8000 / 9000 Series as specified) |
| 1 x M2C_SB | Chipset | Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs |
| 4 x SATA | Chipset | 4 x SATA 6Gb/s connectors |
RAID
| Storage Type | RAID Support |
|---|---|
| NVMe SSD | RAID 0, 1, 10 |
| SATA | RAID 0, 1, 10 |
USB
From CPU:
- 1 x USB Type-C® port on back panel (USB 3.2 Gen 1)
- 1 x USB 3.2 Gen 1 port on back panel
- 1 x USB 2.0/1.1 port on back panel
From Chipset:
- 2 x USB 3.2 Gen 1 ports on back panel
- 1 x USB Type-C® port with USB 3.2 Gen 1 support (internal header)
- 2 x USB 3.2 Gen 1 ports (internal header)
- 5 x USB 2.0/1.1 ports
- 1 on back panel
- 4 via internal USB headers
Internal Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 2 x system fan headers
- 2 x addressable LED strip headers
- 1 x RGB LED strip header
- 2 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C® header (USB 3.2 Gen 1)
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (for GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
- 1 x Q-Flash Plus button
- 1 x reset jumper
- 1 x Clear CMOS jumper
Rear Panel I/O
- 1 x PS/2 keyboard/mouse port
- 1 x USB Type-C® port (USB 3.2 Gen 1)
- 3 x USB 3.2 Gen 1 ports
- 2 x USB 2.0/1.1 ports
- 1 x HDMI port
- 2 x DisplayPorts
- 2 x SMA antenna connectors (2T2R) (1T1R)**
- 1 x RJ-45 LAN port
- 3 x audio jacks
** Only for Realtek® Wi-Fi 6 RTL8851BE.
Form Factor
| Specification | Details |
|---|---|
| Form Factor | Micro ATX |
| Dimensions | 24.4 cm x 24.4 cm |
Operating System Support
- Windows 11 64-bit
- Windows 10 64-bit
