Gigabyte B760 GAMING X GEN5 Intel 1700 Socket Motherboard, ATX, 4x DDR5 Slots, 3x M.2 Socket, 2.5GbE LAN, 1x HDMI Port / 1x DisplayPort

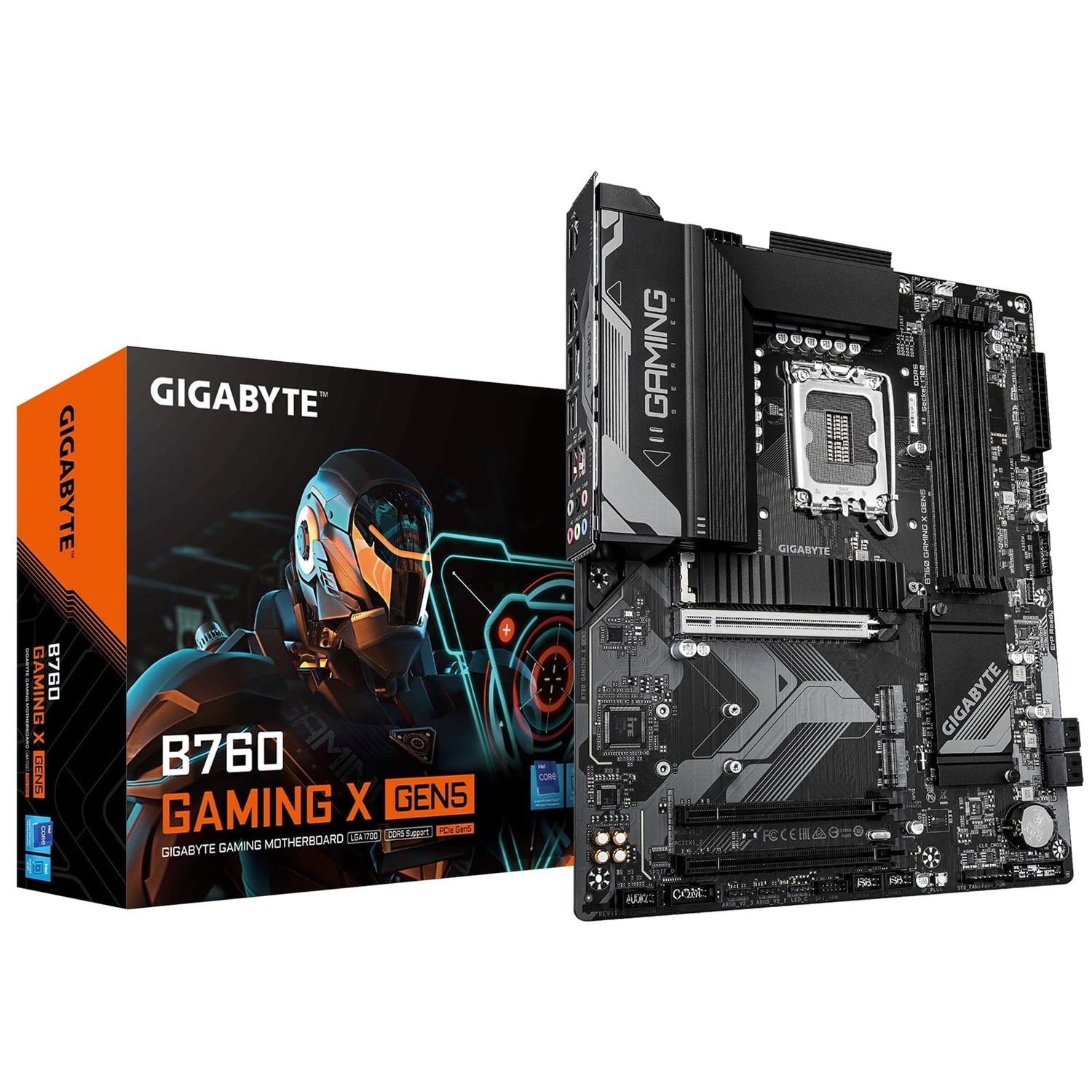

Gigabyte B760 GAMING X Gen5 ATX Motherboard

Experience next-generation PCIe 5.0 performance on the Intel LGA1700 platform with the GIGABYTE B760 GAMING X GEN5 motherboard. Designed for DIY builders and gamers, it delivers powerful performance, efficient cooling, and robust durability.

PCIe Gen5 Performance

• PCIe 5.0 x16 slot for graphics or NVMe SSD
• Doubles data transfer rate over PCIe 4.0, from 16 GT/s to 32 GT/s per lane
• Ideal for high-performance graphics, storage, and AI accelerators

Thermal Design

• Fully covered thermal solution
• High-coverage MOSFET heatsinks
• Integrated molding heatsinks for improved airflow and heat exchange

Built for DIY & Durability

• Designed for a hassle-free assembly and ultimate DIY experience
• Part of GIGABYTE Ultra Durable technology for longevity and reliability
• Engineered for maximum turbo boost and overclocking performance

Personalization & Software

• Supports customizable lighting effects and aesthetics
• Bundled with useful and intuitive software to control motherboard settings
• Support for GIGABYTE Control Center (GCC)
• Support for Smart Backup, Q-Flash, and Q-Flash Plus (BIOS update without CPU, memory, or GPU installed)

Key Features

• PCIe Gen5 Performance: Perfect Sync to Win
• CPU Support: Intel Core 14th / 13th / 12th Gen processors
• Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
• EZ-Latch: PCIe 5.0 x16 slot with quick release design
• PCIe UD Slot: SMD PCIe 5.0 armor for enhanced graphics card support
• Power Design: Hybrid 8+1+1 phases VRM solution
• Memory: Dual Channel DDR5, 4 DIMMs with XMP support
• Network: 2.5GbE LAN
• Connectivity: Front USB-C 10Gb/s, DisplayPort, HDMI
• Storage: 3 × PCIe 4.0 x4 M.2 connectors
• Smart Fan 6: Multiple temperature sensors, hybrid fan headers with FAN STOP
• Q-Flash Plus: BIOS update without CPU, memory, or graphics card

Specifications

CPU & Chipset

(For latest CPU support list, refer to GIGABYTE’s website.)

Memory

(See GIGABYTE “Memory Support List” for details.)

Onboard Graphics

Audio

LAN

Expansion Slots

Storage

USB

Internal I/O Connectors

• 1 × 24-pin ATX main power connector
• 1 × 8-pin ATX 12V power connector
• 1 × CPU fan header
• 1 × CPU fan / water cooling pump header
• 3 × system fan headers
• 1 × system fan / water cooling pump header
• 3 × addressable RGB Gen2 LED strip headers
• 1 × RGB LED strip header
• 3 × M.2 Socket 3 connectors
• 4 × SATA 6Gb/s connectors
• 1 × front panel header
• 1 × front panel audio header
• 1 × S/PDIF Out header
• 1 × USB Type-C header (USB 3.2 Gen 2)
• 1 × USB 3.2 Gen 1 header
• 2 × USB 2.0/1.1 headers
• 1 × Trusted Platform Module header (for GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
• 1 × serial port header
• 1 × Q-Flash Plus button
• 1 × reset jumper
• 1 × Clear CMOS jumper

Back Panel Connectors

• 1 × USB 3.2 Gen 2 Type-A port (red)
• 1 × USB Type-C port (USB 3.2 Gen 1)
• 1 × USB 3.2 Gen 1 port
• 5 × USB 2.0/1.1 ports
• 2 × antenna connectors (2T2R)
• 1 × DisplayPort*
• 1 × HDMI port*
• 1 × RJ-45 LAN port
• 6 × audio jacks

*Actual support may vary by CPU.

I/O Controller & Monitoring

• iTE I/O Controller chip
• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control

BIOS

• 1 × 256 Mbit flash
• AMI UEFI BIOS (licensed)
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features & Software

• Support for GIGABYTE Control Center (GCC)
• Support for Q-Flash and Q-Flash Plus
• Support for Smart Backup
• Bundled Software: Norton Internet Security (OEM version)

Operating System Support

• Windows 11 64-bit
• Windows 10 64-bit

Form Factor

• ATX Form Factor
• Dimensions: 30.5 cm × 24.4 cm
