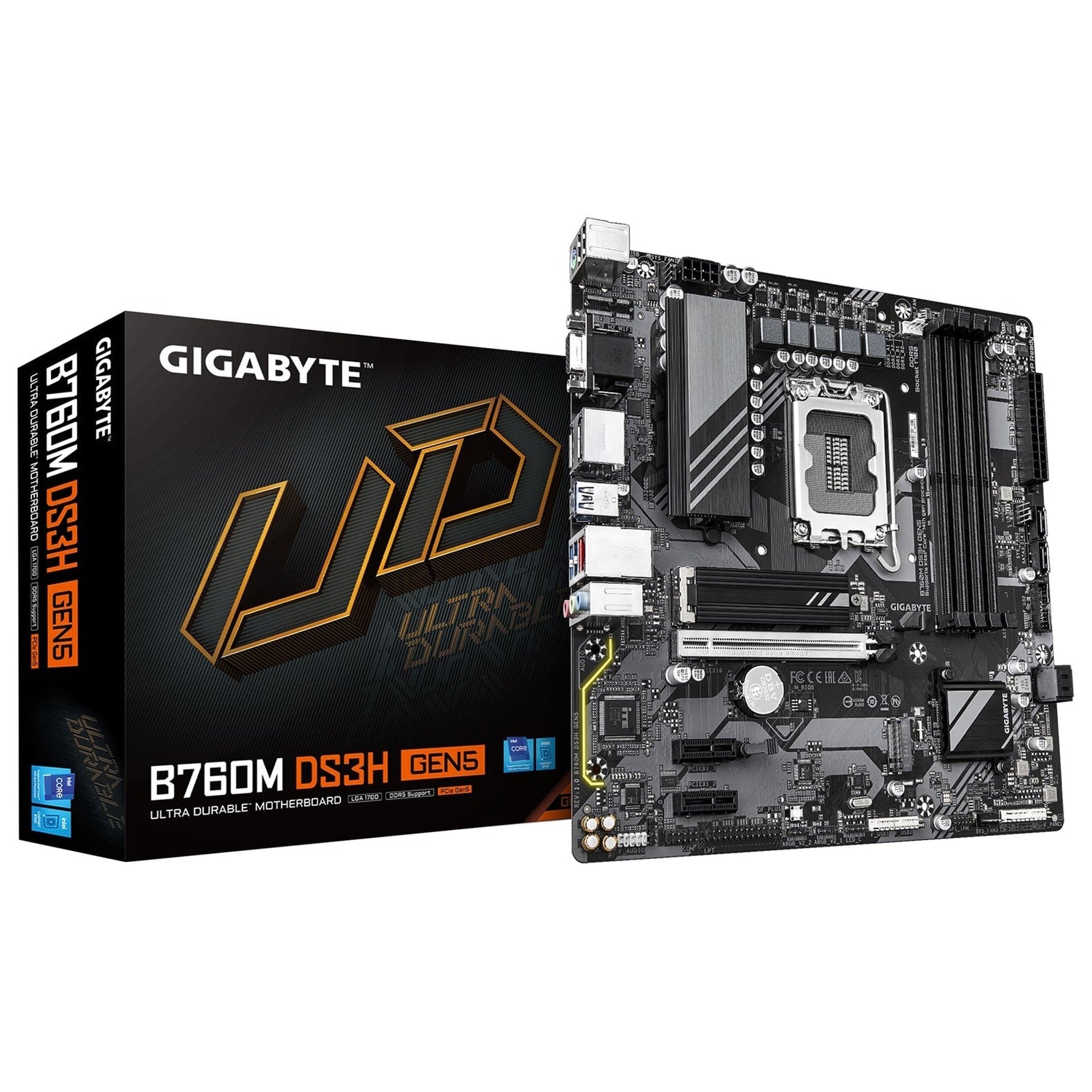

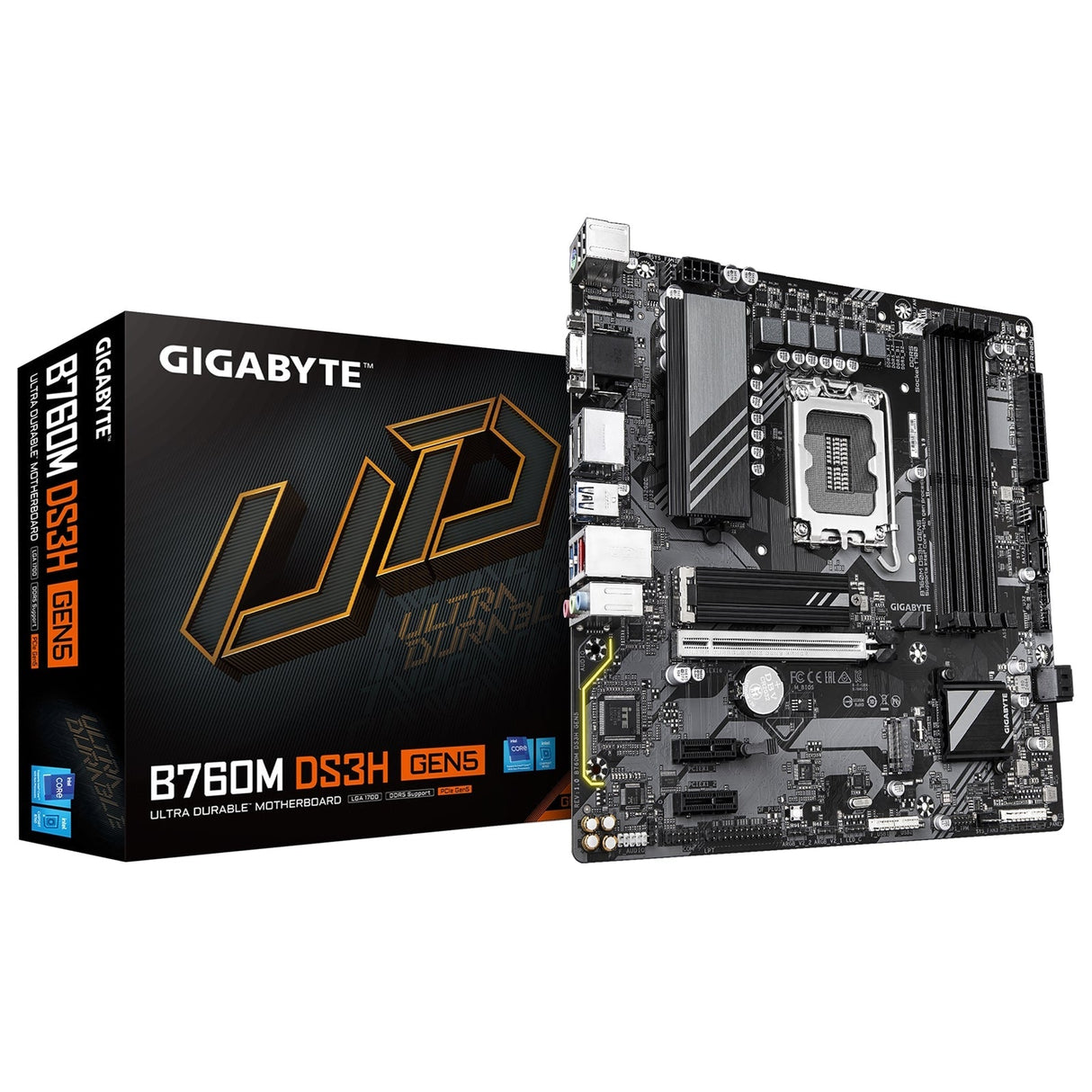

Gigabyte B760M DS3H GEN5 Intel Socket 1700 Motherboard, Micro ATX, 4x DDR5 Slots, 2x M.2 Sockets, 2.5GbE LAN, 1x D-Sub / 1x DisplayPort / 1x HDMI Port
Harga reguler
$158.00
Harga satuan
/
Tidak tersedia
Gigabyte B760M DS3H GEN5 Intel Socket 1700 Motherboard, Micro ATX, 4x DDR5 Slots, 2x M.2 Sockets, 2.5GbE LAN, 1x D-Sub / 1x DisplayPort / 1x HDMI Port dipesan kembali dan akan dikirim segera setelah kembali tersedia.
Tidak bisa memuat ketersediaan pickup
We Accept:
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Pengiriman dan Pengiriman
Pengiriman dan Pengiriman
Pengiriman & Proses
Proses Urutan
- Bisnis yang sama - hari untuk perintah ditempatkan sebelum 3 PM (GMT), kecuali dalam kasus langka ketika dapat mengambil 1 hari bisnis tambahan.
- Barang yang lebih besar atau spesialis memerlukan hingga 3 hari bisnis untuk memproses.
Opsi Pengiriman
- Royal Mail 48
- Perintah bebas lebih dari £20
- £2.99 pada perintah di bawah £20
- Pengiriman dalam 2-3 hari bisnis
- Dilacak 24 (Next-Day)- £4,99
- Standar (Item Spesialis & Besar)
- Perintah bebas lebih dari £20
- £6.99 pada perintah di bawah £20
- Pengiriman dalam 2-14 hari bisnis (biasanya sekitar 7 hari)
- Proses mungkin memakan waktu sampai 3 hari bisnis
- Internasional
- Kami kapal di seluruh dunia. Opsi pengiriman dan perkiraan jangka waktu bagi negara Anda tersedia di checkout.
- Bea Cukai, tugas, dan pajak impor adalah tanggung jawabmu.
Anda akan menerima pelacakan rincian segera setelah kapal pesanan Anda [melacak pesanan Anda di sini]. Untuk rincian penuh, silahkan lihat kami [Pengiriman Kebijakan].
Gigabyte B760M DS3H GEN5 Intel Socket 1700 Motherboard, Micro ATX, 4x DDR5 Slots, 2x M.2 Sockets, 2.5GbE LAN, 1x D-Sub / 1x DisplayPort / 1x HDMI Port
$158.00
GIGABYTE B760 Micro ATX Motherboard – PCIe 5.0, DDR5, 14th Gen Ready
Unlock high-speed PCIe Gen5 performance, advanced DDR5 memory support, and robust power delivery with this GIGABYTE B760 micro ATX motherboard, engineered for Intel 14th, 13th, and 12th Gen processors.
Key Features
PCIe Gen5 Performance & Graphics Support
- PCIe 5.0 x16 Slot with EZ-Latch quick-release design
- PCIe UD Slot: SMD PCIe 5.0 armor for enhanced graphics card support
- Express to PCIe 5 Performance:
- PCIe 5.0 doubles data transfer rate vs. PCIe 4.0 (from 16 GT/s to 32 GT/s per lane)
- Optimized for high-performance graphics cards, storage devices, and AI accelerators
Unparalleled Power & Cooling
- Hybrid 6+2+1 Phases VRM Solution for stable power delivery
- Hybrid VRM Design with high-quality components
- VRM Thermal: Durable VRM heatsinks for efficient cooling
- UD Power Connector for improved power conductivity and thermal dissipation
- Solid Pins: Enhanced conductivity, signal integrity, and reduced wear
Next-Gen DDR5 Memory
- Dual Channel DDR5
- 4 x DIMM slots, XMP memory module support
- Platform tested and proven for extreme DDR5 performance boost
Fast Networking & Storage
- 2.5 GbE LAN for blistering-fast wired networking
- 2 x PCIe 4.0 x4 M.2 connectors for next-generation NVMe SSDs
- 4 x SATA 6Gb/s connectors with RAID 0/1/5/10 support
Extended Connectivity
- Rear USB-C 10Gb/s (USB 3.2 Gen 2 Type-C)
- Multiple USB 3.2 Gen 1 and USB 2.0 ports
- Display outputs: DP, HDMI, D-Sub
- Backwards-compatible USB connectivity for a wide range of devices
Advanced Cooling Control – Smart Fan 6
- Multiple temperature sensors
- Hybrid fan headers with FAN STOP
- Cool, quiet, and customizable thermal management
BIOS & Build-Friendly Features
- Q-Flash Plus: Update BIOS without installing CPU, memory, or graphics card
- EZ-Latch Designs: User-friendly mechanisms to simplify assembly
- Innovative, intuitive hardware, software, and BIOS interface
Premium Audio
- Hi-Fi Audio design
- High-end audio capacitors
- Audio Noise Guard
- Support for high-definition multi-channel audio
Durable Performance
- GIGABYTE Ultra Durable motherboard design
- Optimal component selection inside and out
- Built for prime performance and a long-lasting platform
Detailed Specifications
CPU
| Specification | Details |
|---|---|
| Socket | LGA1700 |
| CPU Support | 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron Processors |
| L3 Cache | Varies with CPU |
| Chipset | Intel B760 Express Chipset |
Memory
| Specification | Details |
|---|---|
| Supported CPUs for High-Speed DDR5 | 14th & 13th Gen Intel Core i9/i7 |
| Supported Memory Speeds (i9/i7) | DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5200 / 4800 / 4400 MT/s |
| Supported CPUs (other) | 13th Gen Intel Core i5/i3 and 12th Gen Intel Core, Pentium Gold, Celeron |
| Supported Memory Speeds (i5/i3/12th Gen) | DDR5 4800 / 4400 MT/s |
| DIMM Slots | 4 x DDR5 DIMM sockets |
| Max Capacity | Up to 256 GB (64 GB per DIMM) |
| Channel Architecture | Dual channel |
| ECC Support | ECC Un-buffered DIMM 1Rx8/2Rx8 (operate in non-ECC mode) |
| Non-ECC Support | Un-buffered DIMM 1Rx8/2Rx8/1Rx16 |
| XMP Support | Support for Extreme Memory Profile (XMP) modules |
Onboard Graphics
| Output | Max Resolution | Notes |
|---|---|---|
| D-Sub | 1920x1200 @ 60 Hz | Intel HD Graphics required |
| HDMI | 4096x2160 @ 60 Hz | HDMI 2.1, HDCP 2.3, native HDMI 2.1 TMDS compatible |
| DisplayPort (x2) | 4096x2304 @ 60 Hz | DisplayPort 1.2, HDCP 2.3 |
Integrated graphics support requires a compatible Intel processor with Intel HD Graphics.
Audio
| Specification | Details |
|---|---|
| Codec | Realtek Audio CODEC |
| Audio | High Definition Audio |
| Channels | 2/4/5.1/7.1-channel support |
| Digital Output | Support for S/PDIF Out |
| Enhancements | High-End Audio Capacitors, Audio Noise Guard |
LAN
| Specification | Details |
|---|---|
| Controller | Realtek 2.5GbE LAN chip |
| Speeds | 2.5 Gbps / 1 Gbps / 100 Mbps |
Expansion Slots
| Source | Slots | Standard | Lane Configuration | Notes |
|---|---|---|---|---|
| CPU | 1 x PCI Express x16 | PCIe 5.0 | x16 | Supports a graphics card or an NVMe SSD only |
| Chipset | 2 x PCI Express x1 | PCIe 3.0 | x1 | — |
Storage
| Source | Connector | Type | Interface |
|---|---|---|---|
| CPU | 1 x M.2 (M2A_CPU) | Socket 3, M key, type 2280 | PCIe 4.0 x4/x2 SSD support |
| Chipset | 1 x M.2 (M2P_SB) | Socket 3, M key, type 2280 | PCIe 4.0 x4/x2 SSD support |
| Chipset | 4 x SATA | SATA 6Gb/s | RAID 0, 1, 5, 10 support |
USB
| Source | Ports | Type | Standard |
|---|---|---|---|
| Chipset (rear) | 1 x USB Type-C | USB 3.2 Gen 2 | Up to 10Gbps |
| Chipset (rear) | 3 x USB Type-A | USB 3.2 Gen 1 | — |
| Chipset (internal) | 2 x USB Type-A (via header) | USB 3.2 Gen 1 | — |
| Chipset (rear) | 2 x USB Type-A | USB 2.0/1.1 | — |
| Chipset + USB 2.0 Hub (internal) | 4 x USB (via headers) | USB 2.0/1.1 | — |
USB 3.2 Gen 2 Type-C provides up to 10Gbps with backwards compatibility to USB 3.2 Gen 1 and USB 2.0.
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 3 x system fan headers
- 2 x addressable RGB Gen2 LED strip headers
- 1 x RGB LED strip header
- 2 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (for specific GC-TPM2.0 SPI modules)
- 1 x serial port header
- 1 x parallel port header
- 1 x S/PDIF Out header
- 1 x Q-Flash Plus button
- 1 x reset jumper
- 1 x Clear CMOS jumper
Back Panel Connectors
- 2 x USB 2.0/1.1 ports
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x HDMI port
- 2 x DisplayPorts
- 3 x USB 3.2 Gen 1 ports
- 1 x USB Type-C port (USB 3.2 Gen 2)
- 1 x RJ-45 LAN port
- 3 x audio jacks
I/O Controller & Monitoring
- iTE I/O Controller chip
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
BIOS
- 1 x 128 Mbit flash
- AMI UEFI BIOS (licensed)
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
- Support for GIGABYTE Control Center (GCC)
- Available applications and functions vary by model and specifications
- Support for Q-Flash
- Support for Q-Flash Plus
- Support for Smart Backup
Bundled Software
- Norton Internet Security (OEM version)
Operating System Support
- Windows 11 64-bit
- Windows 10 64-bit
Form Factor
- Micro ATX Form Factor
- Dimensions: 24.4 cm x 24.4 cm
