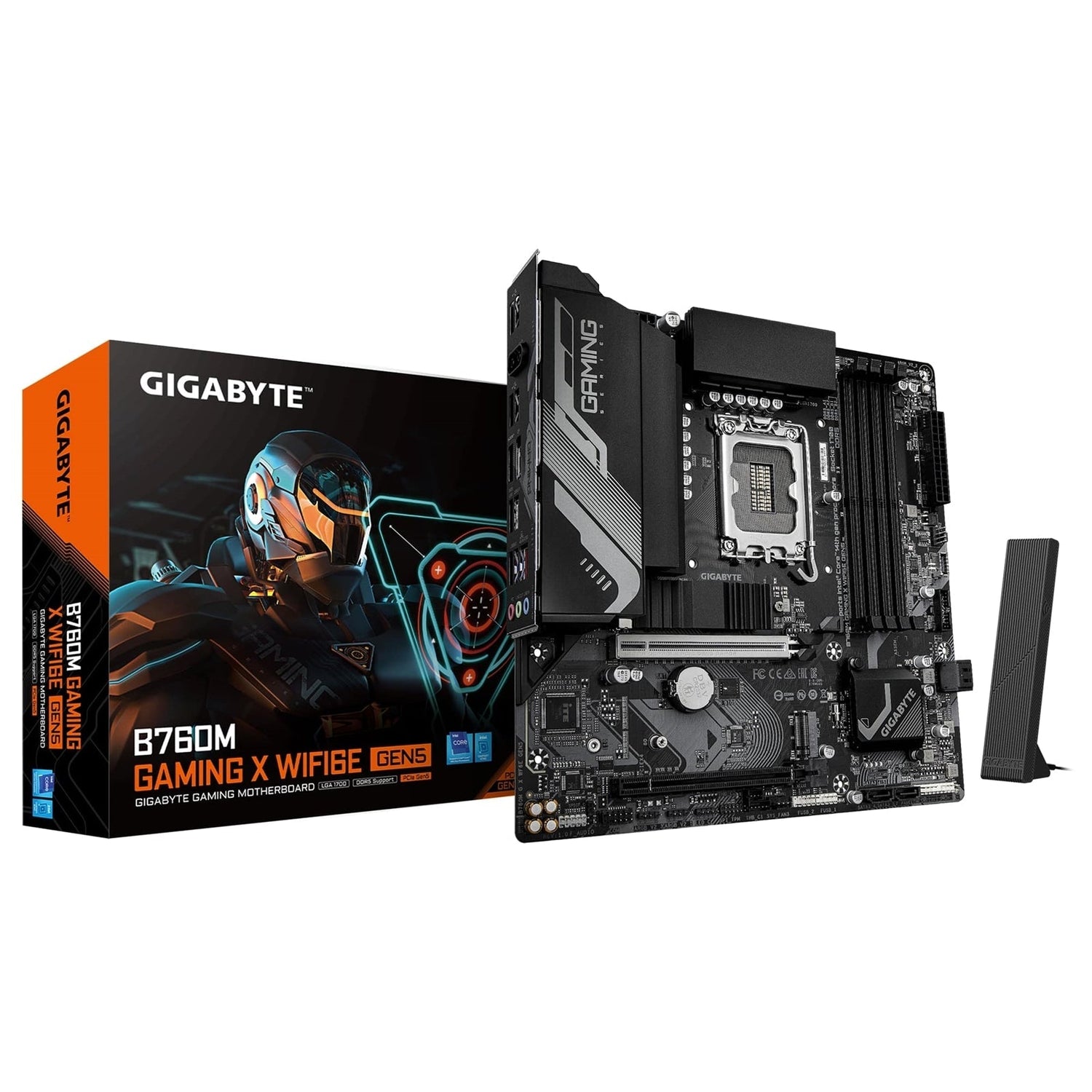

Gigabyte B760M GAMING X WIFI6E GEN 5 INTEL Socket Motherboard, Micro-ATX, 4x DDR5 Slots, 2x M.2 Socket, 2.5GbE LAN, Wi-Fi 6E, 1x HDMI Port / 1x Display Port

Gigabyte B760M GAMING X WIFI6E (PCIe 5.0, Wi‑Fi 6E, Gen5-Ready)

Experience next-generation performance and connectivity with the GIGABYTE B760M GAMING X WIFI6E motherboard, engineered for PCIe Gen5 graphics, high-speed storage, and advanced networking.

PCIe Gen5 Performance

• PCIe 5.0 x16 slot for graphics, doubling bandwidth over PCIe 4.0 (from 16 GT/s to 32 GT/s per lane)
• Optimized for high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement
• Designed to deliver boosted PCIe Gen5 performance on the existing Intel LGA1700 platform

Advanced Thermal Design

• Fully covered thermal design for improved heat dissipation
• High-coverage MOSFET and integrated molding heatsinks enhance thermal efficiency with better airflow and heat exchange
• Smart Fan 6 with:
• Multiple temperature sensors
• Hybrid fan headers with FAN STOP

DIY-Friendly & Durable

• Hassle-free assembly with user-oriented design for a smooth DIY build
• Built on GIGABYTE Ultra Durable technology, focusing on longevity and reliability
• PCIe EZ-Latch: PCIe 5.0 x16 slot with quick release design
• PCIe UD Slot: SMD PCIe 5.0 armor for enhanced graphics card support
• Q-Flash Plus: Update BIOS without installing CPU, memory, or graphics card

Power & Performance

• Optimal power design for maximum Turbo Boost and overclocking performance
• Hybrid 8+1+1 phases VRM solution for stable power delivery

Memory

• Dual Channel DDR5, 4 x DIMM slots, up to 256 GB (64 GB per DIMM)
• Support for:
• DDR5 5600/5200/4800/4400 MT/s (14th & 13th Gen Intel Core i9/i7)
• DDR5 4800/4400 MT/s (13th Gen Intel Core i5/i3 & 12th Gen Intel Core, Pentium Gold, Celeron)
• ECC Un-buffered DIMM 1Rx8/2Rx8 (non-ECC mode)
• Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
• Extreme Memory Profile (XMP) memory modules

(Supported memory types, speeds, and DRAM count depend on CPU and configuration; see GIGABYTE’s Memory Support List.)

All-Round Connectivity

• Fast Networks
• Realtek 2.5GbE LAN
• Intel Wi‑Fi 6E AX210 (2.4/5/6 GHz, 11ax 160 MHz support)
• Bluetooth 5.3
• WIFI EZ-Plug: Quick and easy Wi‑Fi antenna installation

• WIFI Compass: Auto-detects best antenna position for strongest signal

• Extended Connectivity

• Front USB Type‑C® 10 Gb/s (USB 3.2 Gen 2)

• Display output via HDMI and DisplayPort

• Next Generation Storage

• 2 x PCIe 4.0 x4 M.2 connectors
• 4 x SATA 6 Gb/s connectors
• RAID 0/1/5/10 support for SATA storage

Personalization & Software

• Customizable lighting effects and motherboard controls via GIGABYTE software
• Support for GIGABYTE Control Center (GCC)
• Includes Norton Internet Security (OEM version) and LAN bandwidth management software

Key Features (Summary)

• PCIe Gen5 Performance – Perfect Sync to Win
• Supports Intel Core 14th / 13th / 12th Gen processors
• Efficient Thermal – VRM Thermal Armor Advanced & M.2 Thermal Guard
• Wi‑Fi EZ-Plug & Wi‑Fi Compass
• PCIe EZ-Latch & PCIe UD Slot
• Hybrid 8+1+1 Phases VRM Solution
• Dual Channel DDR5, 4 x DIMMs with XMP support
• 2.5GbE LAN & Wi‑Fi 6E 802.11ax
• Front USB‑C 10 Gb/s, DP, HDMI
• 2 x PCIe 4.0 x4 M.2
• Smart Fan 6
• Q‑Flash Plus

Specifications

CPU

Memory

Onboard Graphics

(Integrated graphics support depends on CPU.)

Audio

LAN & Wireless

Expansion Slots

Storage

USB

Internal I/O Connectors

• 1 x 24‑pin ATX main power connector
• 1 x 8‑pin ATX 12V power connector
• 1 x CPU fan header
• 3 x system fan headers
• 3 x addressable LED strip headers
• 1 x RGB LED strip header
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6 Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x USB Type‑C header (USB 3.2 Gen 2)
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 2 x Thunderbolt add-in card connectors
• 1 x Trusted Platform Module header (GC‑TPM2.0 SPI series only)
• 1 x serial port header
• 1 x Q‑Flash Plus button
• 1 x reset jumper
• 1 x Clear CMOS jumper

Back Panel Connectors

• 3 x USB 3.2 Gen 1 ports
• 5 x USB 2.0/1.1 ports
• 2 x antenna connectors (2T2R)
• 1 x HDMI port
• 1 x DisplayPort
• 1 x RJ‑45 LAN port
• 3 x audio jacks

I/O Controller & Monitoring

• iTE I/O controller chip
• Voltage, temperature, fan speed, and water cooling flow rate detection
• Fan fail warning and fan speed control

BIOS

• 1 x 256 Mbit flash
• AMI UEFI BIOS (licensed)
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for GIGABYTE Control Center (GCC)
• Support for Q‑Flash & Q‑Flash Plus
• Support for Smart Backup

Operating System

• Windows 11 64‑bit
• Windows 10 64‑bit

Form Factor

• Micro ATX
• Dimensions: 24.4 cm x 24.4 cm
