Gigabyte H610M D3W WIFI6 (Rev. 1.1) Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 1x M.2 Socket, GbE LAN, WiFi 6, 1x DisplayPort / 1x HDMI Port
$138.00

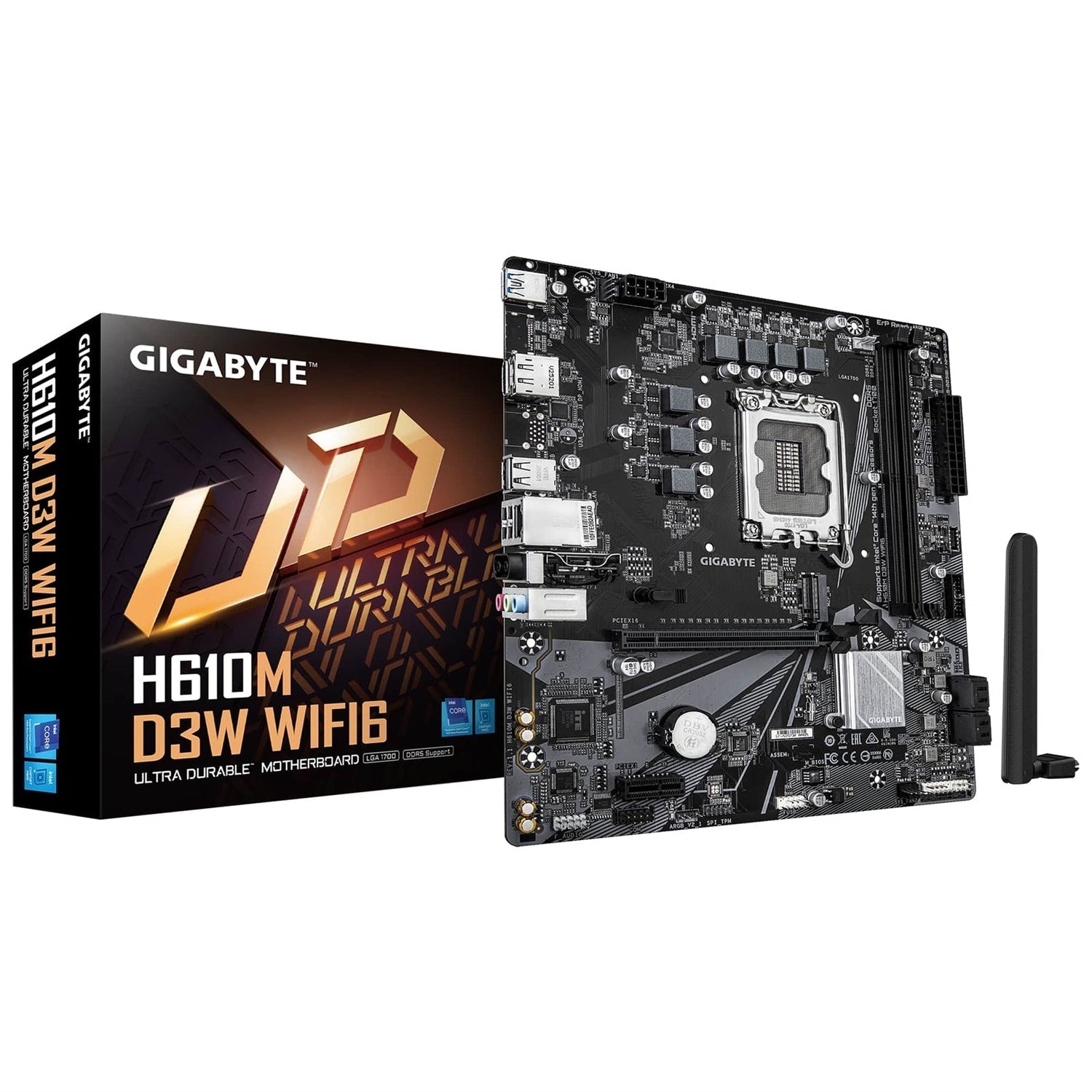

GIGABYTE H610M D3W WIFI6 (Rev. 1.1) Motherboard
Compact micro ATX motherboard designed for Intel® 14th, 13th, and 12th Gen processors, featuring DDR5 memory support, Wi-Fi 6 connectivity, and multiple display outputs.
Key Features
- CPU Support
- Supports Intel® Core™ 14th / 13th / 12th Generation processors
- Memory
- Dual Channel Non-ECC Unbuffered DDR5
- 2 x DIMM slots, up to 128 GB total
- Power Design
- 5+1+1 Hybrid Digital VRM Design
- Networking
- Fast Wi-Fi 6 802.11ax
- Realtek® GbE LAN
- Storage
- NVMe PCIe 3.0 x4 M.2 connector
- Display Outputs
- DisplayPort and HDMI for multiple display support
- Audio
- High quality audio capacitors
- Audio Noise Guard
- Cooling
- Smart Fan 6 with multiple temperature sensors
- Hybrid fan headers with FAN STOP
- Software
- GIGABYTE CONTROL CENTER (GCC) for simple, easy control
- Reliability
- Anti-Sulfur Resistors Design
Specifications
CPU
| Item | Details |
|---|---|
| Socket | LGA1700 |
| Support | 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors |
| L3 Cache | Varies with CPU |
| Note | For the latest CPU support list, refer to GIGABYTE's website |
Chipset
| Item | Details |
|---|---|
| Chipset | Intel® H610 Express Chipset |
Memory
| Item | Details |
|---|---|
| Supported CPUs (Memory) | 14th & 13th Gen Intel® Core™ i9/i7: DDR5 5600/5200/4800/4400 MT/s 13th Gen Intel® Core™ i5/i3 & 12th Gen Intel® Core™, Pentium® Gold, Celeron®: DDR5 4800/4400 MT/s |
| Slots | 2 x DDR5 DIMM sockets |
| Capacity | Up to 128 GB (64 GB per DIMM) |
| Architecture | Dual channel |
| Supported Modules | ECC Un-buffered DIMM 1Rx8/2Rx8 (operate in non-ECC mode) Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 |
| Features | Support for Extreme Memory Profile (XMP) |
| Note | Supported memory types, speeds, and module count may vary by CPU and configuration; see GIGABYTE “Memory Support List” for details |
BIOS
| Item | Details |
|---|---|
| ROM | 1 x 128 Mbit flash |
| Type | Licensed AMI UEFI BIOS |
| Standards | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Graphics
Integrated Graphics Processor (Intel® HD Graphics support, CPU dependent)
| Output | Details |
|---|---|
| DisplayPort | 1 x DisplayPort, max resolution 4096x2304@60 Hz Supports DisplayPort 1.2 and HDCP 2.3 |
| HDMI | 1 x HDMI port, max resolution 4096x2160@60 Hz Supports HDMI 2.1 and HDCP 2.3 Supports native HDMI 2.1 TMDS compatible ports |
| Note | Graphics specifications may vary depending on CPU support |
Audio
| Item | Details |
|---|---|
| Codec | Realtek® Audio CODEC |
| Audio | High Definition Audio, 2/4/5.1/7.1-channel* |
| Note | * Audio jack functionality can be changed via audio software. Configure 7.1-channel audio in the audio software. |
LAN
| Item | Details |
|---|---|
| Chip | Realtek® GbE LAN |
| Speeds | 1 Gbps / 100 Mbps / 10 Mbps |
Wireless LAN & Bluetooth
| Item | Details |
|---|---|
| Wireless | Realtek® Wi-Fi 6 RTL8851BE |
| Standards | Wi-Fi a/b/g/n/ac/ax |
| Bands | 2.4/5 GHz carrier frequency bands |
| Bluetooth | Bluetooth 5.3 |
| Wireless Standard | Supports 11ax 80 MHz |
| Note | Actual data rate may vary depending on environment and equipment |
Expansion Slots
| Source | Slot |
|---|---|
| CPU | 1 x PCI Express x16 slot, PCIe 4.0, running at x16 |
| Chipset | 1 x PCI Express x1 slot, PCIe 3.0, running at x1 |
Storage
| Controller | Interface |
|---|---|
| Chipset | 1 x M.2 connector (Socket 3, M key, type 2280, PCIe 3.0 x4/x2 SSD support) |
| Chipset | 4 x SATA 6Gb/s connectors |
RAID
| Item | Details |
|---|---|
| RAID | N/A |
USB
| Controller | Ports |
|---|---|
| Chipset | 1 x USB Type-C® port with USB 3.2 Gen 1 support (via internal header) |
| 3 x USB 3.2 Gen 1 ports (1 x rear, 2 x via internal header) | |
| 2 x USB 2.0/1.1 ports via internal header | |
| Chipset + USB 2.0 Hub | 4 x USB 2.0/1.1 ports on the back panel |
Internal Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 2 x system fan headers
- 2 x addressable RGB Gen2 LED strip headers
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C® header (USB 3.2 Gen 1 support)
- 1 x USB 3.2 Gen 1 header
- 1 x USB 2.0/1.1 header
- 1 x Trusted Platform Module header (for GC-TPM2.0 SPI V2 module only)
- 1 x serial port header
- 1 x Clear CMOS jumper
Rear Panel I/O
- 1 x DisplayPort*
- 1 x HDMI port*
- 1 x USB 3.2 Gen 1 port
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 LAN port
- 2 x antenna connectors
- 3 x audio jacks
* Refer to graphics section for specifications.
Form Factor
| Item | Details |
|---|---|
| Form Factor | Micro ATX |
| Dimensions | 24.4 cm x 22.0 cm |
Operating System Support
- Windows 11 64-bit
- Windows 10 64-bit
