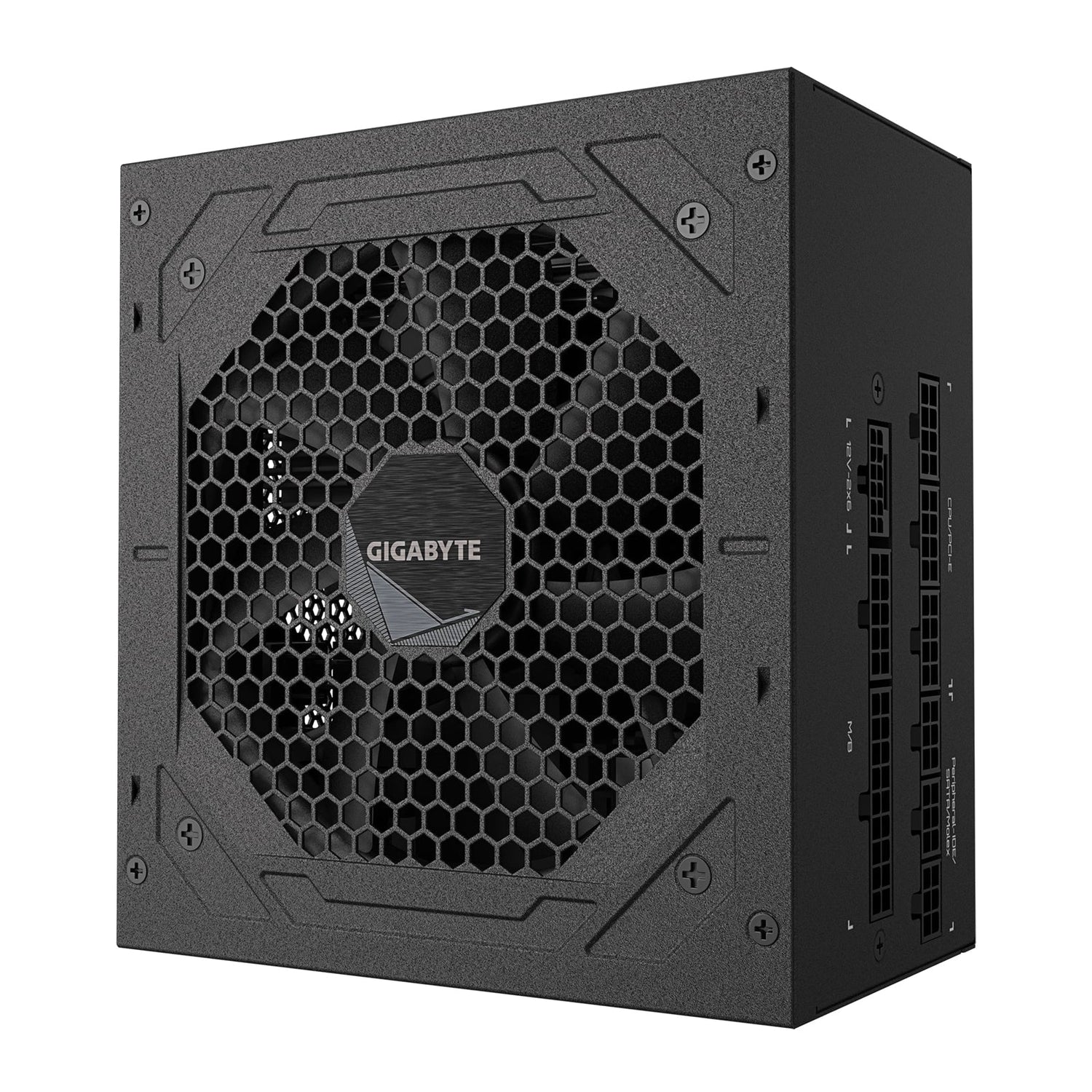

GIGABYTE UD1000GM PG5 1000W PSU V2
The GIGABYTE UD1000GM PG5 V2 is a 1000W power supply designed for modern gaming and high-performance systems, combining ultra-durable engineering, high efficiency, and next-gen connectivity in a compact ATX form factor.
Key Features
Ultra Durable Design
- Built with high-quality components and smart design for stable, long-term performance.
- 100% Japanese capacitors for efficient operation and enhanced reliability.
ATX 3.1 & PCIe Gen 5.1 Ready
- Intel ATX 3.1 compliant to support next-generation power requirements.
- Handles up to 3× GPU and 2× system power excursions with 70% efficiency at low loads.
- Native high-performance 16-pin (12VHPWR) cable delivers up to 600W for PCIe Gen 5.1 graphics cards, such as the GeForce RTX 50 Series and future GPUs.
Advanced Cooling with 120mm HYB Fan
- 120mm smart Hydraulic Bearing (HYB) fan.
- Fan speed automatically adjusts according to power load.
- Operates silently when the system is idle or under 20% load.
- Hydraulic bearing design supports a longer and more stable fan lifespan.
Comprehensive Protection
- Integrated OVP / OPP / SCP / UVP / OCP / OTP protections for stable operation in various conditions.
- Backed by safety certifications from multiple countries for added peace of mind.
Fully Modular Cabling
- Fully modular design with all-black embossed cables.
- Connect only the cables you need to reduce clutter.
- Improves case airflow and overall thermal performance.
80 PLUS Gold Certified
- 80 PLUS Gold certification.
- Delivers 90% efficiency at 50% load.
- Higher efficiency means less power waste, reduced heat, and lower fan noise.
Compact Design
- Short 140mm chassis depth to enhance compatibility.
- Designed to fit even in more space-constrained cases while maintaining performance.
Specifications
| Category | Details |
|---|---|
| Model | GP-UD1000GM PG5 V2 |
| Type | Intel Form Factor ATX 12V v3.1 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100–240 Vac (full range) |
| Input Current | 15–6.5 A |
| Input Frequency | 60–50 Hz |
| Output Capacity | 1000W |
| Dimensions (L × W × H) | 150 × 140 × 86 mm |
| Fan Type | 120mm Hydraulic Bearing (HYB) Fan |
| 80 PLUS | Gold |
| Efficiency | 90% at typical load |
| MTBF | >100,000 hours |
| Protections | OVP / OPP / SCP / UVP / OCP / OTP |
| Power Good Signal | 100–150 ms |
| Hold Up Time | >16 ms |
| Cable Type | Embossed, all black |
Connectors
| Connector Type | Quantity & Length |
|---|---|
| ATX / MB 20+4 Pin | 1 × 610 mm |
| CPU / EPS 4+4 Pin | 2 (650 mm + 200 mm on one cable) |
| PCIe 6+2 Pin | 4 (600 mm + 150 mm on two cables) |
| PCIe 12+4 Pin | 1 × 700 mm |
| SATA | 8 (600 mm + 150 mm + 150 mm + 150 mm on two cables) |
| 4-Pin Peripheral | 3 (500 mm + 150 mm + 150 mm + 150 mm on one cable) |
| 4-Pin Floppy | 1 (on the peripheral cable) |
The GIGABYTE UD1000GM PG5 1000W PSU V2 combines next-gen ATX 3.1 and PCIe Gen 5.1 readiness with ultra-durable components, quiet smart cooling, and a fully modular, compact design—ideal for powerful, future-ready systems.
