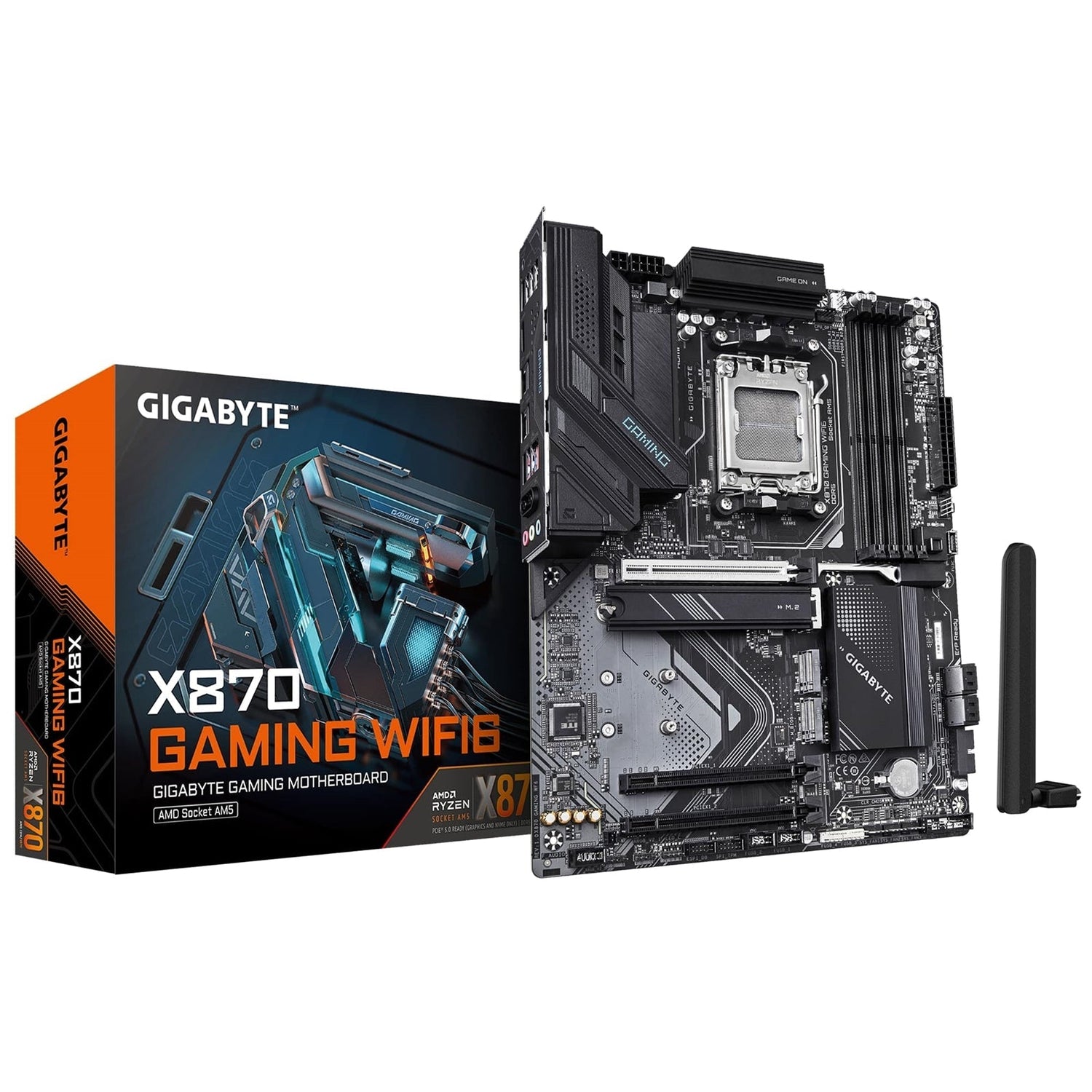

Gigabyte X870 GAMING WIFI6 AMD AM5 Socket Motherboard, ATX, 4x DDR5 Slots, 3x M.2 Sockets, Fitted I/O Shield, 2.5GbE LAN, Wi-Fi 6, 1x HDMI Port / 1x USB-C (USB4)
$300.00
X870 GAMING WIFI6 Motherboard
Key Features
- AMD Socket AM5 Support
-
Compatible with AMD Ryzen 9000 / 8000 / 7000 Series Processors
-
Robust Power Design
- Digital twin 8+2+2 phases VRM solution for consistent, high-powered performance
-
Designed to elevate overclocking capabilities
-
High-Performance DDR5 Memory
- Dual Channel DDR5 with 4 x DIMM slots
- Supports AMD EXPO memory modules
-
Auto DDR5 Memory Boost and one-click acceleration for instant performance enhancement
-
Ultra-Fast Storage
- 3 x M.2 slots, including 1 x PCIe 5.0 x4
-
Efficient VRM Thermal Armor Advanced & M.2 Thermal Guard
-
Advanced Networking
- 2.5GbE LAN
-
Wi-Fi 6 802.11ax wireless with Bluetooth
-
Next-Gen Connectivity
- Dual USB4 Type-C ports with DP-Alt support
- HDMI output
-
Extended USB connectivity including USB 3.2 Gen 2x2 Type-C
-
User-Friendly Design
- WIFI EZ-Plug for quick Wi-Fi antenna installation
- EZ-Latch Plus and EZ-Latch Click for screwless PCIe and M.2 installation
- EZ Debug Zone with centralized debug LEDs and control buttons
-
Friendly UI and UC BIOS with multi-theme, AIO fan control, and Q-Flash Auto Scan
-
Hi-Fi Audio
- High-end audio capacitors
-
Audio Noise Guard
-
Durable Performance
-
GIGABYTE Ultra Durable design for long-lasting stability
-
Exclusive HWiNFO Partnership
Gaming & Creation Ready
Built for the most advanced PCs for gaming and content creation, this AMD X800-series motherboard platform delivers:
- USB4 onboard
- Robust overclocking capabilities
- Faster dual-channel DDR5 memory support
- AMD EXPO technology
- PCIe 5.0 support for both graphics and NVMe
Pair with AMD Ryzen 9000, 8000, and 7000 Series processors to power demanding games and large projects.
Memory Performance – “Zenith of the Memory”
GIGABYTE Gaming motherboards boost DDR5 memory performance and deliver top-notch compatibility through advanced design. With Auto DDR5 Memory Boost and one-click acceleration, you can:
- Instantly unleash the full potential of DDR5
- Enhance gaming and work efficiency with a single click
Real-time analysis helps improve overclocking accuracy from EZ to Pro.
Comprehensive Thermal Design
GAMING motherboards feature advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient, including:
- VRM Thermal Armor Advanced
- M.2 Thermal Guard
This comprehensive thermal solution supports sustained performance under load.
Future-Ready Connectivity
Experience blazing data transfer speeds and versatile connectivity:
Dual 40Gbps USB4 with DP-Alt
- 2 x USB4 Type-C ports, each supporting up to 40 Gbps
- USB4 and DisplayPort video outputs
- Beneficial for video editing, large file transfers, and data-intensive tasks
802.11ax Wi-Fi 6
- Gigabit-class wireless performance
- Smooth video streaming and improved gaming experience
- Fewer dropped connections
- Speeds up to 2.4Gbps and 5Gbps
- Bluetooth 5 with 4X range over BT 4.2 and faster transmission
2.5GbE LAN
- 2.5GbE LAN for lightning-fast wired networking
- Reduced lag and enhanced responsiveness for competitive gaming
PCIe 5.0/4.0 Hardware Design
- PCIe 5.0 x16 slot for next-generation graphics
- PCIe 5.0/4.0 M.2 slot support for high-speed NVMe SSDs
- Designed to work with PCIe 5.0 and 4.0 devices for superior performance
Easy-Friendly Experience
Innovative and intuitive hardware, software, and BIOS interface design make building and tuning your system easier:
- WIFI EZ-Plug – Integrates Wi-Fi antenna plugs into one adapter for effortless installation
- EZ-Latch Designs – Screwless PCIe and M.2 quick-release mechanisms
- EZ Debug Zone – Centralized LEDs and control buttons for organized troubleshooting
- UC BIOS – User-centered interface for intuitive performance adjustment
- Q-Flash Auto Scan – Automatically scans for BIOS files on USB during Q-Flash
Specifications
CPU
| Item | Details |
|---|---|
| Socket | AMD Socket AM5 |
| CPU Support | AMD Ryzen 9000 Series Processors AMD Ryzen 8000 Series Processors AMD Ryzen 7000 Series Processors |
| Chipset | AMD X870 |
Memory
| Item | Details |
|---|---|
| Memory Type | DDR5 |
| Supported Speeds | 8200(OC)/8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s |
| Slots | 4 x DDR5 DIMM sockets |
| Max Capacity | Up to 256 GB (64 GB per DIMM) |
| Architecture | Dual channel |
| Module Support | Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 |
| Profiles | AMD Extended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) |
Onboard Graphics
| Item | Details |
|---|---|
| Integrated Graphics | AMD Radeon Graphics (when supported by CPU) |
| USB4 Video | 2 x USB4 Type-C ports with DisplayPort video outputs, up to 3840x2160@240 Hz (via ASMedia USB4 controller) |
| HDMI | 1 x HDMI port, up to 4096x2160@60 Hz |
Audio
| Item | Details |
|---|---|
| Codec | Realtek Audio CODEC |
| Audio Channels | High Definition Audio, 2/4/5.1/7.1-channel |
| Enhancements | High-End Audio Capacitors, Audio Noise Guard |
LAN & Wireless
| Item | Details |
|---|---|
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless | Realtek Wi-Fi 6 RTL8851BE (PCB rev. 1.0) |
| Wi-Fi Standards | WIFI a, b, g, n, ac, ax |
| Bands | 2.4/5 GHz |
| Bluetooth | Bluetooth 5.3 |
| Wireless Standard | Support for 11ax 80MHz |
Expansion Slots
| Item | Details |
|---|---|
| PCIEX16 (CPU) | 1 x PCI Express x16 slot |
| Ryzen 9000 / 7000 | PCIe 5.0 x16 mode |
| Ryzen 8000 Phoenix 1 | PCIe 4.0 x8 mode |
| Ryzen 8000 Phoenix 2 | PCIe 4.0 x4 mode |
| Chipset Slots | 2 x PCI Express x16 slots (PCIEX1_1/2), PCIe 3.0, running at x1 |
Storage
| Item | Details |
|---|---|
| M2A_CPU | 1 x M.2 (Socket 3, M key) 25110/22110/2580/2280 Ryzen 9000/7000: PCIe 5.0 x4/x2 SSDs Ryzen 8000 Phoenix 1/2: PCIe 4.0 x4/x2 SSDs |
| M2C_SB | 1 x M.2 (Socket 3, M key) 25110/22110/2580/2280, PCIe 4.0 x2 SSDs (Chipset) |
| M2B_SB | 1 x M.2 (Socket 3, M key) 25110/22110/2580/2280, PCIe 4.0 x4/x2 SSDs (Chipset) |
| SATA | 4 x SATA 6Gb/s connectors |
| NVMe RAID | RAID 0, 1, 5, 10 support for NVMe SSDs |
| SATA RAID | RAID 0, 1, 10 support for SATA storage |
USB
| Source | Ports |
|---|---|
| CPU + ASMedia USB4 | 2 x USB4 Type-C ports on back panel |
| CPU | 1 x USB 3.2 Gen 2 Type-A (red) on back panel 1 x USB 3.2 Gen 1 port on back panel |
| Chipset + 2 x USB 2.0 Hubs | 8 x USB 2.0/1.1 ports (4 rear, 4 internal) |
| Chipset | 1 x USB Type-C with USB 3.2 Gen 2x2 (internal header) 4 x USB 3.2 Gen 1 (2 rear, 2 internal) 2 x USB 2.0/1.1 internal ports |
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x CPU fan/water cooling pump header
- 4 x system fan headers
- 3 x addressable RGB Gen2 LED strip headers
- 1 x RGB LED strip header
- 4 x SATA 6Gb/s connectors
- 3 x M.2 Socket 3 connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C header (USB 3.2 Gen 2x2)
- 1 x USB 3.2 Gen 1 header
- 4 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (for GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2)
- 1 x reset jumper
- 1 x Clear CMOS jumper
Back Panel Connectors
- 1 x Q-Flash Plus button
- 2 x SMA antenna connectors (2T2R)
- 1 x HDMI port
- 2 x USB4 Type-C ports (DisplayPort)
- 1 x USB 3.2 Gen 2 Type-A port (red)
- 3 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 LAN port
- 3 x audio jacks
I/O Controller & Monitoring
| Item | Details |
|---|---|
| Controller | iTE I/O Controller Chip |
| Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control |
BIOS
| Item | Details |
|---|---|
| Flash | 1 x 256 Mbit flash |
| Type | AMI UEFI BIOS (licensed) |
| Standards | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Features | Support for Q-Flash, Q-Flash Plus, Smart Backup |
Software & OS Support
| Item | Details |
|---|---|
| GIGABYTE Utilities | GIGABYTE Control Center (GCC) |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Operating Systems | Windows 11 64-bit Windows 10 64-bit |
Form Factor
| Item | Details |
|---|---|
| Form Factor | ATX |
| Dimensions | 30.5 cm x 24.4 cm |
