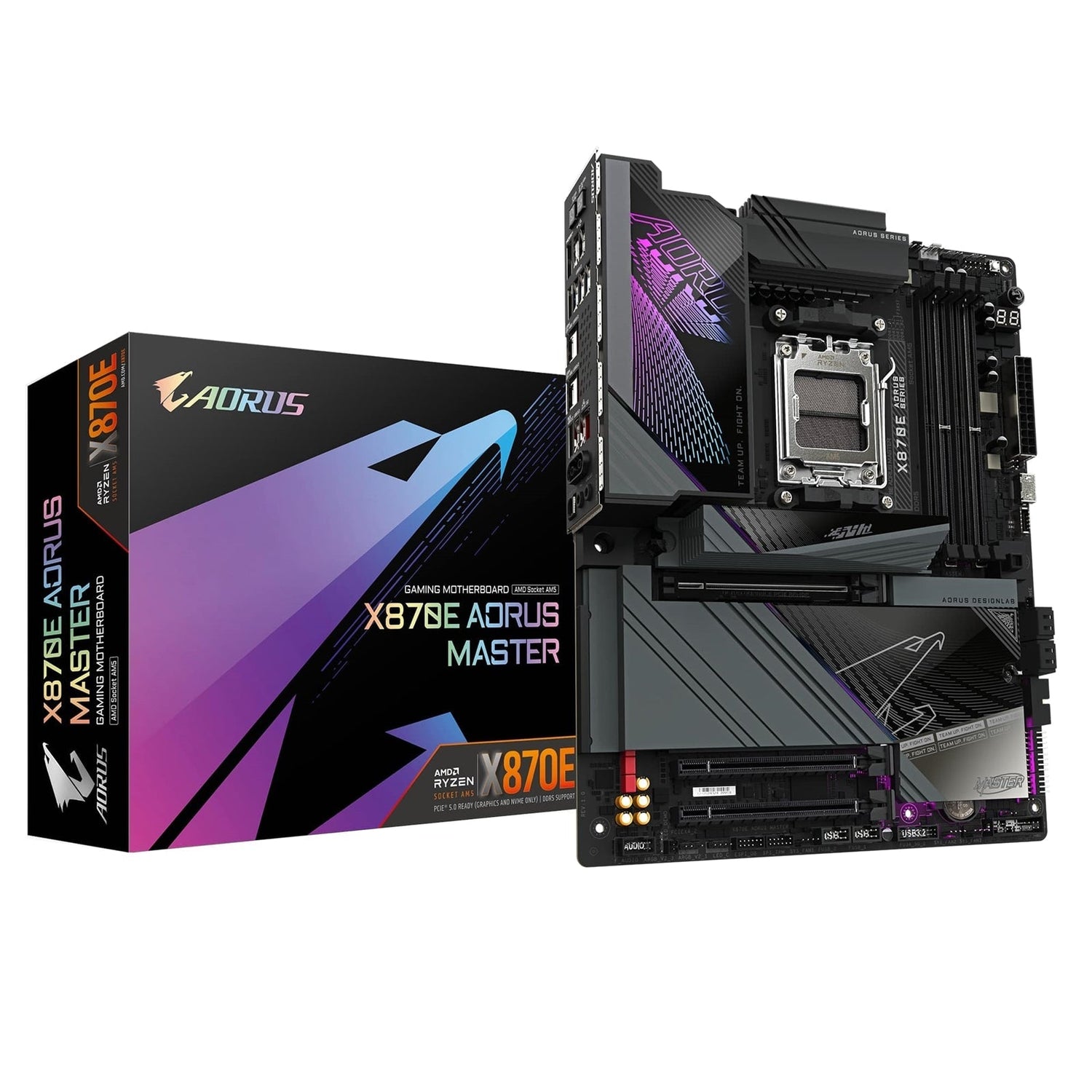

Gigabyte X870E AORUS MASTER AMD AM5 Socket Motherboard, ATX, 4x DDR5 Slots, 4x M.2 Sockets, Fitted I/O Shield, 5GbE LAN, Wi-Fi 7, 1x HDMI Port / 2x USB-C (USB4)

X870E AORUS MASTER Gaming Motherboard (AMD AM5)

The X870E AORUS MASTER is designed for high-end gaming and content creation on the latest AMD platforms, delivering powerful performance, advanced connectivity, and a DIY‑friendly design.

Key Features

• Next-Gen Platform
• AMD Socket AM5
• Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors

• AMD X870E chipset

• Extreme DDR5 Performance

• DDR5 overclocking support up to 8600 MT/s
• Dual Channel DDR5: 4 x DIMM slots (up to 256 GB)
• Supports ECC and non-ECC Un-buffered DIMMs
• AMD EXPO and XMP memory profile support
• Auto DDR5 Memory Boost and One-Click Acceleration for instant performance gains

• “Zenith of the Memory” design for enhanced DDR5 performance and compatibility

• Steady Power Delivery

• Digital twin 16+2+2 phases VRM solution
• Designed for consistent, high-powered performance and advanced overclocking

• New Power Monitor in HWinfo for real‑time CPU power phase monitoring

• Advanced Cooling & Thermal Design

• Comprehensive full‑metal thermal design
• VRM Thermal Armor Advanced with I/O ZONE AORUS LIGHTING
• M.2 Thermal Guard XL

• DDR Wind Blade: enhanced active cooling for memory modules

• Ultra-Fast Storage

• 4 x M.2 slots, including 3 x PCIe 5.0 x4
• RAID 0/1/5/10 support for NVMe SSDs

• RAID 0/1/10 support for SATA storage

• High-Speed Networking

• Realtek 5GbE LAN
• Qualcomm Wi-Fi 7 with directional ultra‑high gain antenna

• Bluetooth 5.3

• Extended Connectivity

• Dual USB4 Type‑C with DP‑Alt and DisplayPort video output
• HDMI and front HDMI support

• Rich USB 3.2 Gen 2x2 / Gen 2 / Gen 1 and USB 2.0 connectivity

• Premium Audio

• Realtek ALC1220 HD Audio Codec
• DTS:X Ultra support
• WIMA audiophile‑grade capacitors

• 2/4/5.1/7.1‑channel audio and S/PDIF Out

• Ultra Durable Design

• PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics cards
• Ultra Durable PCIe Armor: metal back plate on PCIe x16 slot for added durability

• Engineered to endure and excel for long‑term reliability

• DIY-Friendly Assembly

• M.2 EZ-Match: magnetic alignment for easy installation of large heatsinks
• WIFI EZ-Plug: simplified Wi‑Fi antenna installation
• EZ-Latch Plus: quick release & screwless PCIe and M.2 slots
• EZ-Latch Click: screwless M.2 heatsinks
• Sensor Panel Link: onboard video port for simple in‑chassis panel setup

• Onboard power and reset buttons

• User-Centric Software & BIOS

• Friendly UI with multi-theme support
• AIO fan control and Q-Flash auto scan in BIOS and software
• GIGABYTE Control Center (GCC) support
• Q-Flash and Q-Flash Plus support
• Smart Backup support

• Collaborative BIOS improvement through user community feedback

• Built for Advanced Gaming & Creation

• Designed for AMD X800‑series platform
• USB4 onboard, robust overclocking capabilities
• Faster dual-channel DDR5 with AMD EXPO
• PCIe 5.0 support for both graphics and NVMe
• Created for the most demanding games and biggest creative projects

Specifications

CPU & Chipset

Memory

Onboard Graphics

Audio

LAN & Wireless

Expansion Slots

Storage

RAID Support

• NVMe SSDs: RAID 0, 1, 5, 10
• SATA storage: RAID 0, 1, 10

USB

CPU + ASMedia USB4 Controller

• 2 x USB4 Type‑C ports on back panel (with DisplayPort support)

CPU

• 1 x USB 3.2 Gen 2 Type‑A port (red) on back panel

Chipset + USB 3.2 Gen 1 Hub

• 4 x USB 3.2 Gen 1 ports on back panel

Chipset

• 1 x USB Type‑C port with USB 3.2 Gen 2x2 support (via internal header)
• 3 x USB 3.2 Gen 2 Type‑A ports (red) on back panel
• 4 x USB 3.2 Gen 1 ports via internal headers
• 6 x USB 2.0/1.1 ports (2 on back panel, 4 via internal headers)

Internal I/O Connectors

• 1 x 24‑pin ATX main power connector
• 2 x 8‑pin ATX 12V power connectors
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 4 x system fan headers
• 2 x system fan/water cooling pump headers
• 4 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 4 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type‑C header (USB 3.2 Gen 2x2)
• 2 x USB 3.2 Gen 1 headers
• 2 x USB 2.0/1.1 headers
• 1 x noise detection header
• 1 x Trusted Platform Module header (for GC‑TPM2.0 SPI / GC‑TPM2.0 SPI 2.0 / GC‑TPM2.0 SPI V2 modules)
• 1 x HDMI port (Note)
• 1 x power button
• 1 x reset button
• 1 x reset jumper
• 1 x Clear CMOS jumper
• 2 x temperature sensor headers
• Voltage measurement points

Back Panel Connectors

• 1 x Q‑Flash Plus button
• 1 x Clear CMOS button
• 1 x HDMI port (Note)
• 2 x USB4 Type‑C ports (with DisplayPort support (Note))
• 4 x USB 3.2 Gen 2 Type‑A ports (red)
• 4 x USB 3.2 Gen 1 ports
• 2 x USB 2.0/1.1 ports
• 1 x RJ‑45 LAN port
• 2 x antenna connectors (2T2R)
• 2 x audio jacks
• 1 x optical S/PDIF Out connector

Controllers & Monitoring

• I/O Controller: iTE I/O Controller Chip
• Monitoring Capabilities:
• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control

BIOS

• 1 x 256 Mbit flash
• AMI UEFI BIOS (licensed)
• Supports: PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features & Software

• Support for GIGABYTE Control Center (GCC)
• Support for Q‑Flash & Q‑Flash Plus
• Support for Smart Backup
• Bundled Software:
• Norton Internet Security (OEM version)
• LAN bandwidth management software

Operating System & Form Factor

• OS Support: Windows 11 64‑bit
• Form Factor: ATX, 30.5 cm x 24.4 cm

The X870E AORUS MASTER is born from Ultra Durable technology and collaborative excellence in computing, providing a powerful, reliable, and future‑ready foundation for high‑performance gaming and creation PCs.
