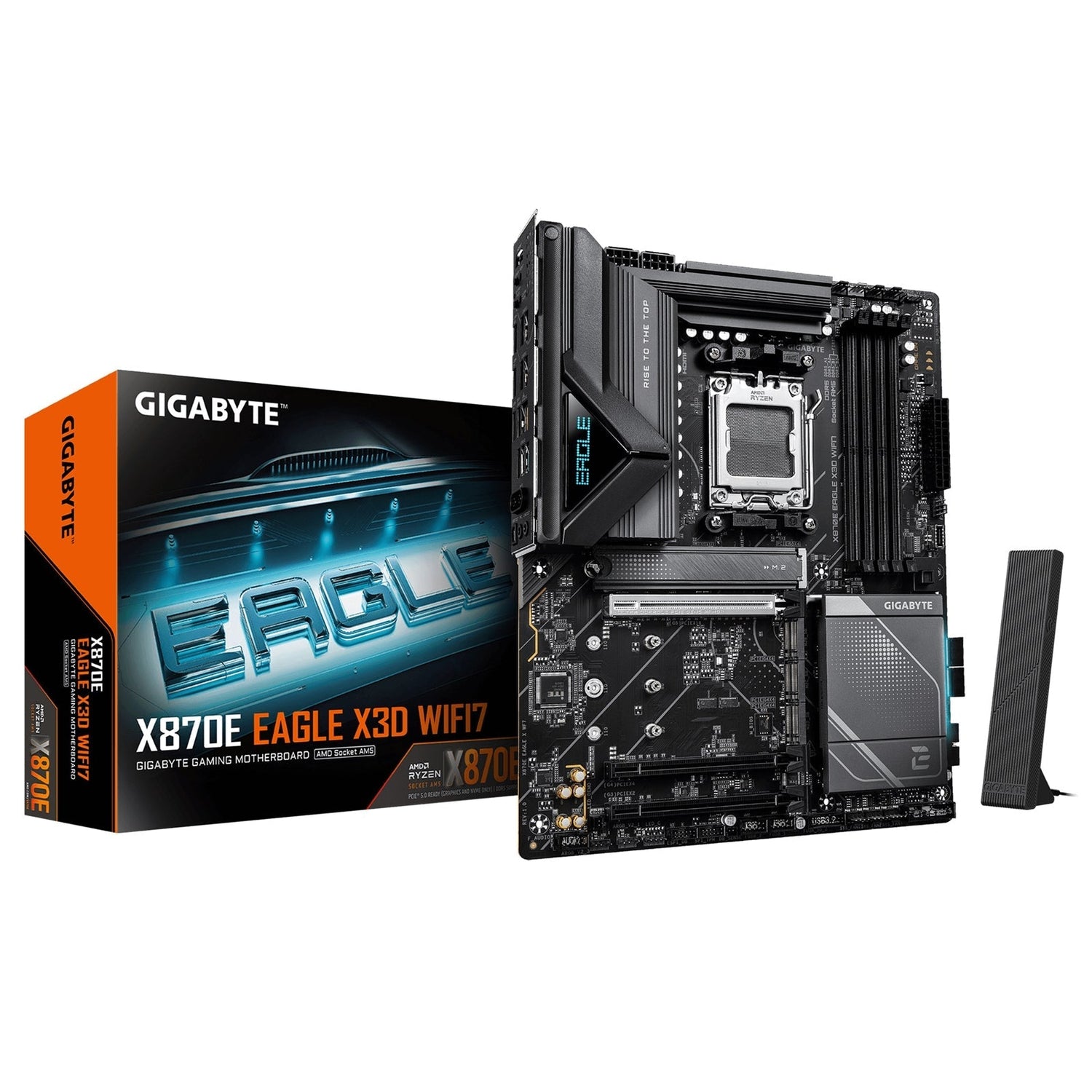

Gigabyte X870E EAGLE X3D WIFI7 AMD AM5 Socket Motherboard, ATX, 4x DDR5 Slots, 4x M.2 Sockets, Fitted I/O Shield, 5GbE LAN, Wi-Fi 7, 1x HDMI Port / 2x USB-C (USB4)

X870E EAGLE X3D WIFI7 Motherboard

The X870E EAGLE X3D WIFI7 is engineered for high-performance AMD Ryzen™ gaming and creation setups, delivering advanced power, memory, storage, and connectivity features in an ATX form factor.

Key Features

• X3D Turbo Mode 2.0
  AI-enhanced performance tuning for X3D processors, with DDR5 overclocking support up to 9000 MT/s.

• DriverBIOS
  Wi-Fi driver pre-installed for quick power-on and easy network setup.

• AMD Socket AM5 Support
  Compatible with:

• AMD Ryzen™ 9000 Series Processors
• AMD Ryzen™ 8000 Series Processors

• AMD Ryzen™ 7000 Series Processors

• Robust Power Delivery
  Digital twin 14+2+2 phases VRM solution.

• Dual Channel DDR5 Memory

• 4 × DIMM slots

• AMD EXPO™ and XMP memory module support

• M.2 EZ-Flex (Exclusive Patented Design)
  High-efficiency M.2 SSD heat dissipation with a flexible baseplate.

• WIFI EZ-Plug
  Quick and easy Wi-Fi antenna installation.

• Tool-less EZ-Latch Design

• PCIe EZ-Latch Plus: Quick-release, screwless PCIe slots
• EZ-Latch Plus: Quick-release, screwless M.2 slots

• EZ-Latch Click: Screwless M.2 heatsinks

• Friendly UI
  Multi-theme interface, AIO fan control, and Q-Flash auto scan in BIOS and software.

• Ultra-Fast Storage
  4 × M.2 slots, including PCIe 5.0 x4 support.

• Efficient Thermal Design
  VRM Thermal Armor Advanced and M.2 Thermal Guard Ext.

• Fast Networking
  5GbE LAN and Wi-Fi 7 with directional ultra-high gain antenna.

• Extended Connectivity
  HDMI and dual USB4 Type-C with DisplayPort Alt Mode.

• PCIe UD Slot
  PCIe 5.0 x16 slot with reinforced strength for graphics cards.

Specifications

CPU

Chipset

Memory

Onboard Graphics

Audio

LAN

Wireless Communication

Expansion Slots

Storage

RAID Support

• NVMe SSD: RAID 0, 1, 5, 10
• SATA: RAID 0, 1, 10

USB Connectivity

CPU + ASMedia USB4® Controller

• 2 × USB4® Type-C® ports on back panel (DisplayPort supported)

CPU

• 1 × USB Type-C® port on back panel (USB 3.2 Gen 2)

Chipset + USB 3.2 Gen 1 Hub

• 4 × USB 3.2 Gen 1 ports via internal headers

Chipset

• 1 × USB Type-C® port with USB 3.2 Gen 2x2 via internal header
• 4 × USB 3.2 Gen 2 Type-A (red) on back panel
• 4 × USB 3.2 Gen 1 ports on back panel
• 4 × USB 2.0/1.1 ports via internal headers

Internal I/O Connectors

• 1 × 24-pin ATX main power connector
• 2 × 8-pin ATX 12V power connectors
• 1 × CPU fan header
• 1 × CPU fan / water cooling pump header
• 4 × system fan headers
• 2 × system fan / water cooling pump headers
• 3 × addressable RGB Gen2 LED strip headers
• 1 × RGB LED strip header
• 4 × M.2 Socket 3 connectors
• 4 × SATA 6Gb/s connectors
• 1 × front panel header
• 1 × front panel audio header
• 1 × USB Type-C® header (USB 3.2 Gen 2x2)
• 2 × USB 3.2 Gen 1 headers
• 2 × USB 2.0/1.1 headers
• 1 × Trusted Platform Module header (for GC-TPM2.0 SPI V2 module only)
• 1 × reset jumper
• 1 × Clear CMOS jumper
• 2 × temperature sensor headers
• 1 × noise detection header

Back Panel Connectors

• 1 × HDMI port*
• 1 × reset button
• 1 × power button
• 1 × Clear CMOS button
• 1 × Q-Flash Plus button
• 4 × USB 3.2 Gen 2 Type-A ports (red)
• 1 × USB Type-C® port (USB 3.2 Gen 2)
• 2 × USB4® Type-C® ports (DisplayPort*)
• 1 × RJ-45 5GbE LAN port
• 4 × USB 3.2 Gen 1 ports
• 2 × antenna connectors (2T2R)
• 2 × audio jacks
• 1 × optical S/PDIF Out connector

*DisplayPort function via USB4 where supported.

I/O Controller & Monitoring

*Fan/pump speed control support depends on the installed fan/pump.

BIOS

Unique Features

• Support for GIGABYTE Control Center (GCC)
• Support for Q-Flash
• Support for Q-Flash Plus
• Support for Smart Backup

Bundled Software

• Norton Internet Security (OEM version)
• LAN bandwidth management software

Operating System Support

• Windows 11 64-bit

Form Factor
