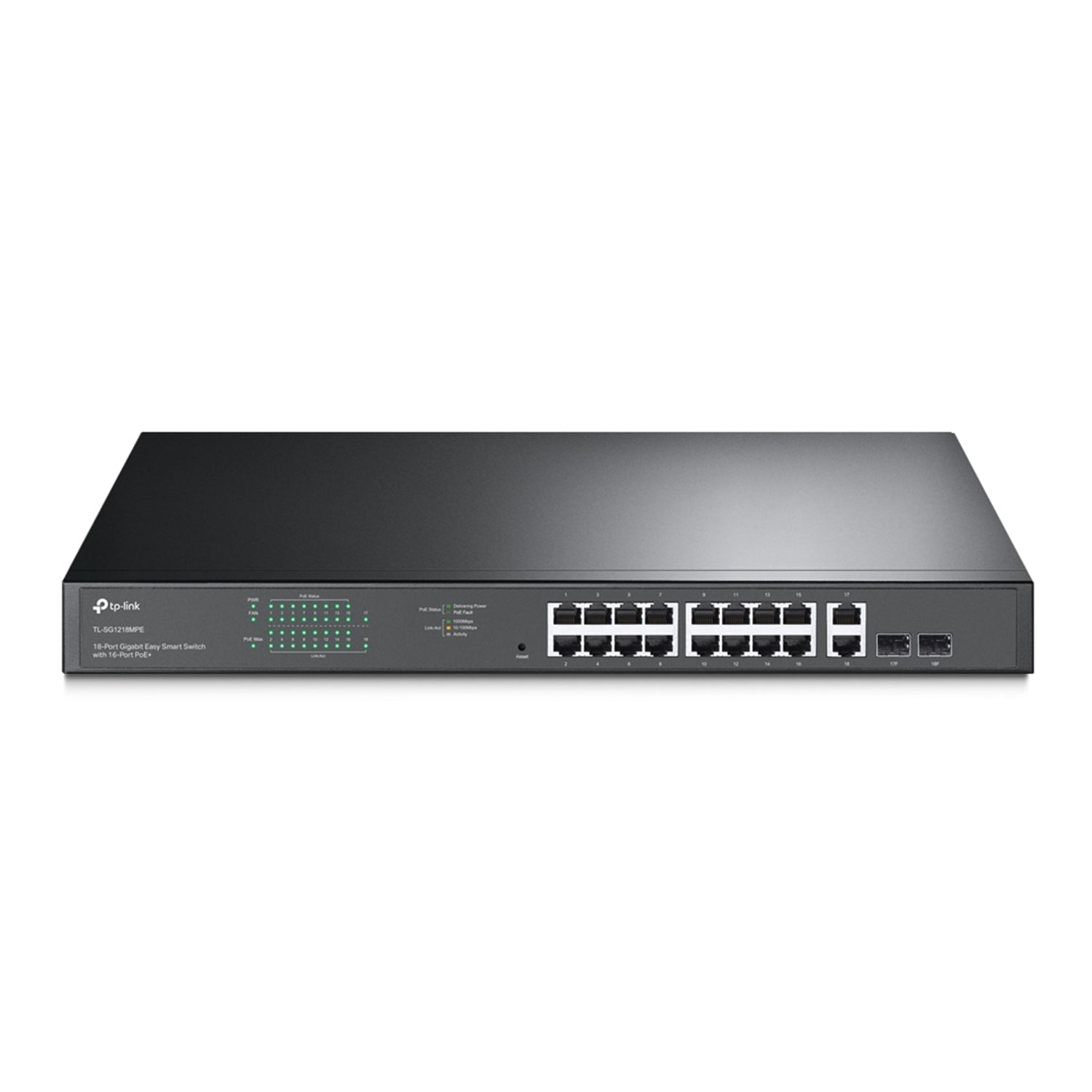

TP-Link TL-SG1218MPE 18-Port Metal Gigabit Easy Smart PoE Switch with 16-Port PoE+ (250W)
$297.00
TL-SG1218MPE Gigabit PoE+ Switch
The TL-SG1218MPE is a high‑performance Gigabit Power over Ethernet (PoE+) switch designed to simplify power and data delivery for your network devices. Combining powerful PoE+ capabilities, robust switching performance, and intuitive management, it provides an efficient solution for modern business networks.
Key Features
Powerful PoE+ Capabilities
- 16 x Gigabit Ethernet PoE+ RJ45 ports
- 2 x Gigabit non‑PoE RJ45 ports
- 2 x Combo Gigabit SFP ports
- 8 ports support PoE+ (802.3at/af) with a total power budget of 192 W
- Easily deploy PoE‑enabled devices such as IP cameras, wireless access points, and VoIP phones without separate power supplies
Seamless Network Performance
- Gigabit Ethernet connectivity for high‑speed data transmission
- Non‑blocking switching architecture for low latency and smooth performance
- Ideal for bandwidth‑intensive and data‑intensive applications
Smart Energy‑Efficient Design
- IEEE 802.3az Energy Efficient Ethernet (EEE) support
- Green Technology automatically adjusts power consumption based on link status and cable length
- Helps reduce energy costs and environmental impact
Intuitive Web Management
- Web‑based GUI for easy configuration and monitoring
- Configure VLANs, QoS, and PoE settings
- Monitor network traffic through a user‑friendly interface
Advanced Security Features
- Access Control Lists (ACLs) to restrict unauthorized access
- Protection against Denial of Service (DoS) attacks
- Enhanced control to help secure sensitive data
Rugged and Durable Design
- Sturdy metal casing for long‑term durability and equipment protection
- Fanless design for silent operation, suitable for quiet environments
Easy Installation & Plug‑and‑Play
- Plug‑and‑play setup for most deployments
- Compatible with a wide range of network devices and protocols
- Simple to integrate into existing networks
Versatile Rack‑Mountable Form Factor
- Rack‑mountable design for server rooms, data centers, and network closets
- Helps save space and centralize network management
Specifications
Hardware Features
| Category | Details |
|---|---|
| Standards & Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3af, 802.3at, 802.1q, 802.1p |
| Interfaces | 16 × 10/100/1000 Mbps PoE+ RJ45 (Auto Negotiation/MDI/MDIX) |
| 2 × 10/100/1000 Mbps non‑PoE RJ45 (Auto Negotiation/MDI/MDIX) | |
| 2 × Combo Gigabit SFP Ports | |
| Network Media | 10BASE‑T: UTP Cat 3/4/5, max 100 m; EIA/TIA‑568 100 Ω STP, max 100 m |
| 100BASE‑TX: UTP Cat 5/5e, max 100 m; EIA/TIA‑568 100 Ω STP, max 100 m | |
| 1000BASE‑T: UTP Cat 5/5e/6 or above, max 100 m; EIA/TIA‑568 100 Ω STP | |
| 1000BASE‑X MMF, SMF | |
| Fan Quantity | 2 Fans |
| Physical Security Lock | Yes |
| Power Supply | 100–240 V AC, 50/60 Hz |
| PoE+ Standard | IEEE 802.3at/802.3af compliant |
| PoE+ Ports | Ports 1–16 |
| Power Supply (PoE) | 250 W |
| Dimensions (W × D × H) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 21.4 W (220 V/50 Hz, no PD connected) |
| 296.3 W (220 V/50 Hz, with 250 W PD connected) | |
| Max Heat Dissipation | 72.97 BTU/h (no PD connected) |
| 1010.38 BTU/h (with 250 W PD connected) |
Performance
| Category | Details |
|---|---|
| Switching Capacity | 36 Gbps |
| Packet Forwarding Rate | 26.78 Mbps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 10 KB |
Software Features
Quality of Service (QoS)
- Port‑based QoS
- 802.1p/DSCP priority
- 4 priority queues
- Rate Limit
- Storm Control
Layer 2 Features
- IGMP Snooping V1/V2/V3
- Static Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention
- PoE Auto Recovery
VLAN
- Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
- MTU/Port/Tag VLAN
Management
- Web‑based GUI
- Easy Smart Configuration Utility
Transmission Method
- Store‑and‑Forward
Others
Certification
- CE
- FCC
- RoHS
Package Contents
- TL‑SG1218MPE
- Power Cord
- Installation Guide
- Rackmount Kit
- Rubber Feet
Environmental
| Condition | Range |
|---|---|
| Operating Temperature | 0–50 °C (32–122 °F) |
| Storage Temperature | −40–70 °C (−40–158 °F) |
| Operating Humidity | 10–90% RH, non‑condensing |
| Storage Humidity | 5–90% RH, non‑condensing |
