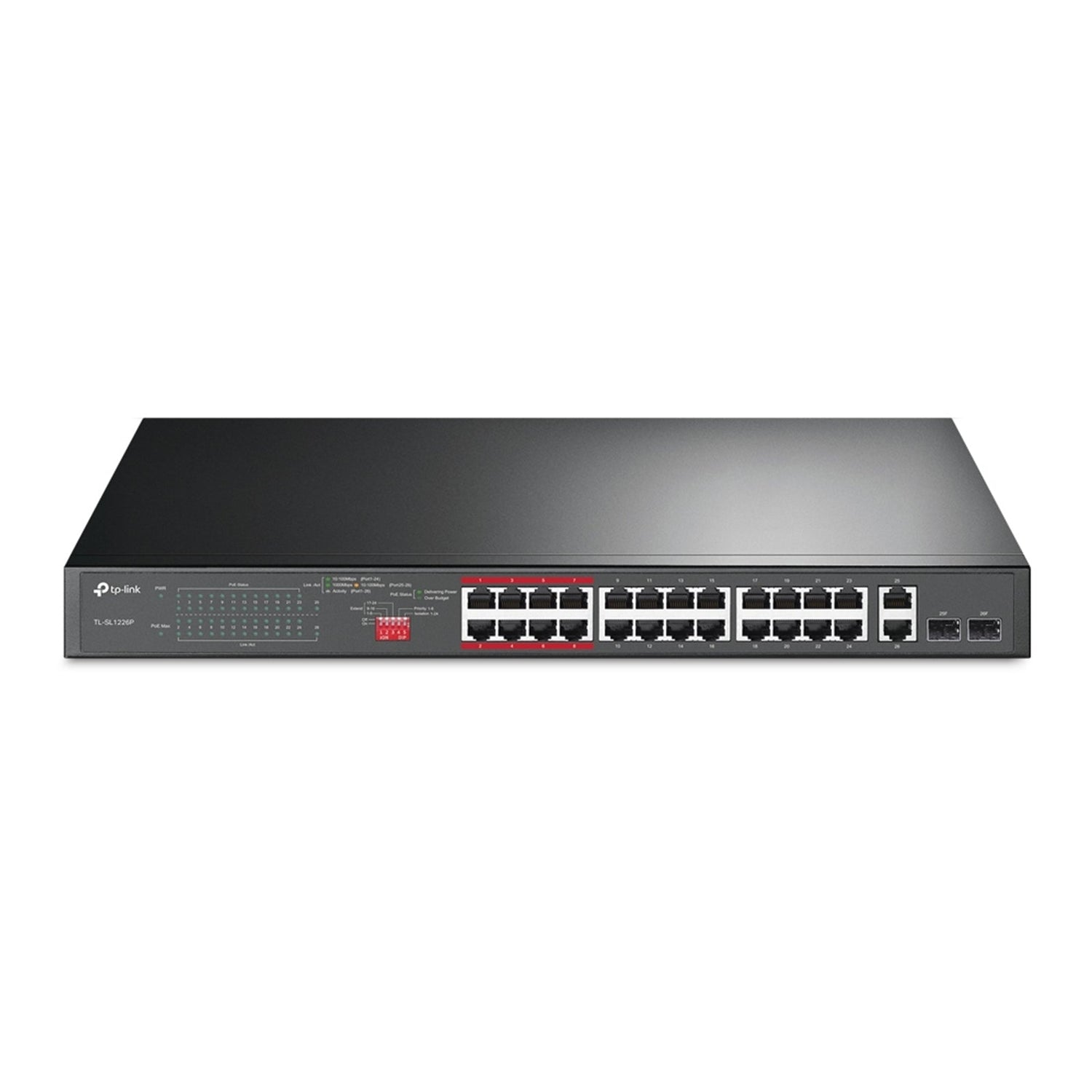

TP-Link TL-SL1226P 24-Port Metal 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch (250W)
$284.00
24‑Port 10/100 Mbps + 2‑Port Gigabit Unmanaged PoE+ Switch (TL‑SL1226P)
Overview
A dedicated 24‑port PoE+ switch designed for surveillance, offices, dormitories, and small businesses. With a 250 W PoE budget, extended PoE transmission, and simple plug‑and‑play setup, it supports a wide range of IP devices including IP cameras, access points, IP phones, computers, and printers.
Key Features
- 24 x PoE+ 10/100 Mbps RJ45 Ports
- Up to 30 W per PoE port
- Total PoE power budget: 250 W
-
802.3af/at compliant
-
High‑Speed Uplink
- 2 x Gigabit RJ45 ports
- 2 x combo Gigabit SFP slots
-
Smooth HD video monitoring even with 24 HD IP cameras
-
Extended PoE Transmission for Surveillance
- Extend Mode: up to 250 m data and power transmission
-
Ideal for IP camera deployment in large areas
-
Enhanced Performance & Security for IP Surveillance
-
Priority Mode:
- Ports 1–8 receive higher priority
- Helps guarantee quality for sensitive applications such as video monitoring
-
Isolation Mode:
- One‑click traffic separation for ports 1–24
- Reduces snooping and tampering
- Helps isolate broadcast storms and improve LAN security and transmission
-
Intelligent Power Management
- Automatically cuts power to lower‑priority ports when total consumption exceeds 250 W
- Helps protect high‑priority ports from power loss
- Automatically detects required PoE power
-
Protects non‑PoE devices from damage
-
Plug and Play
- No configuration required
-
Simple installation for fast deployment
-
Durable Design & Reliable Operation
- Metal casing with professional heat dissipation
- Wide operating temperature range: 0–50 °C (32–122 °F)
Hardware Specifications
| Item | Details |
|---|---|
| Model | TL‑SL1226P |
| Interfaces | 24 x PoE+ 10/100 Mbps RJ45 ports 2 x 10/100/1000 Mbps RJ45 ports 2 x combo Gigabit SFP slots |
| Fan Quantity | 2 fans |
| Physical Security Lock | Yes |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Switching Capacity | 8.8 Gbps |
| Backup Bandwidth | 8.8 Gbps |
| Packet Forwarding Rate | 6.5472 Mpps |
| PoE Standard | 802.3at/802.3af compliant |
| PoE Ports | Port 1 – Port 24 |
| PoE Power Budget | 250 W |
| MAC Address Table | 8 K |
| Jumbo Frame | 10 KB |
| Dimensions (W x D x H) | 17.3 x 7.1 x 1.7 in (440 x 180 x 44 mm) |
| Max Power Consumption | 18.32 W (220/50 Hz, no PD connected) 294 W (220/50 Hz, with 250 W PD connected) |
| Max Heat Dissipation | 62.47 BTU/h (no PD connected) 1002.54 BTU/h (with 250 W PD connected) |
Network Media
| Standard | Media Type & Cable | Max Distance |
|---|---|---|
| 10BASE‑T | UTP Cat 3, 4, 5 EIA/TIA‑568 100Ω STP |
100 m |
| 100BASE‑TX | UTP Cat 5, 5e EIA/TIA‑568 100Ω STP |
100 m |
| 1000BASE‑T | UTP Cat 5, 5e, 6 or above EIA/TIA‑568 100Ω STP |
100 m |
| 1000BASE‑X | MMF, SMF | – |
Software & Advanced Features
- Compatible with IEEE 802.3at/af compliant PDs
- Extend Mode (up to 250 m PoE power and data transmission)
- Priority Mode
- Isolation Mode
- PD Detection
- Intelligent Power Supply
- MAC address auto‑learning and auto‑aging
- IEEE 802.3x flow control
- Store‑and‑forward transmission
Package Contents
- TL‑SL1226P switch
- Power cable
- Installation guide
- Two mounting brackets and fittings
Certification
- CE
- FCC
- RoHS
Environment
| Condition | Range |
|---|---|
| Operating Temperature | 0–50 °C (32–122 °F) |
| Storage Temperature | -40–70 °C (-40–158 °F) |
| Operating Humidity | 10–90% non‑condensing |
| Storage Humidity | 5–90% non‑condensing |
